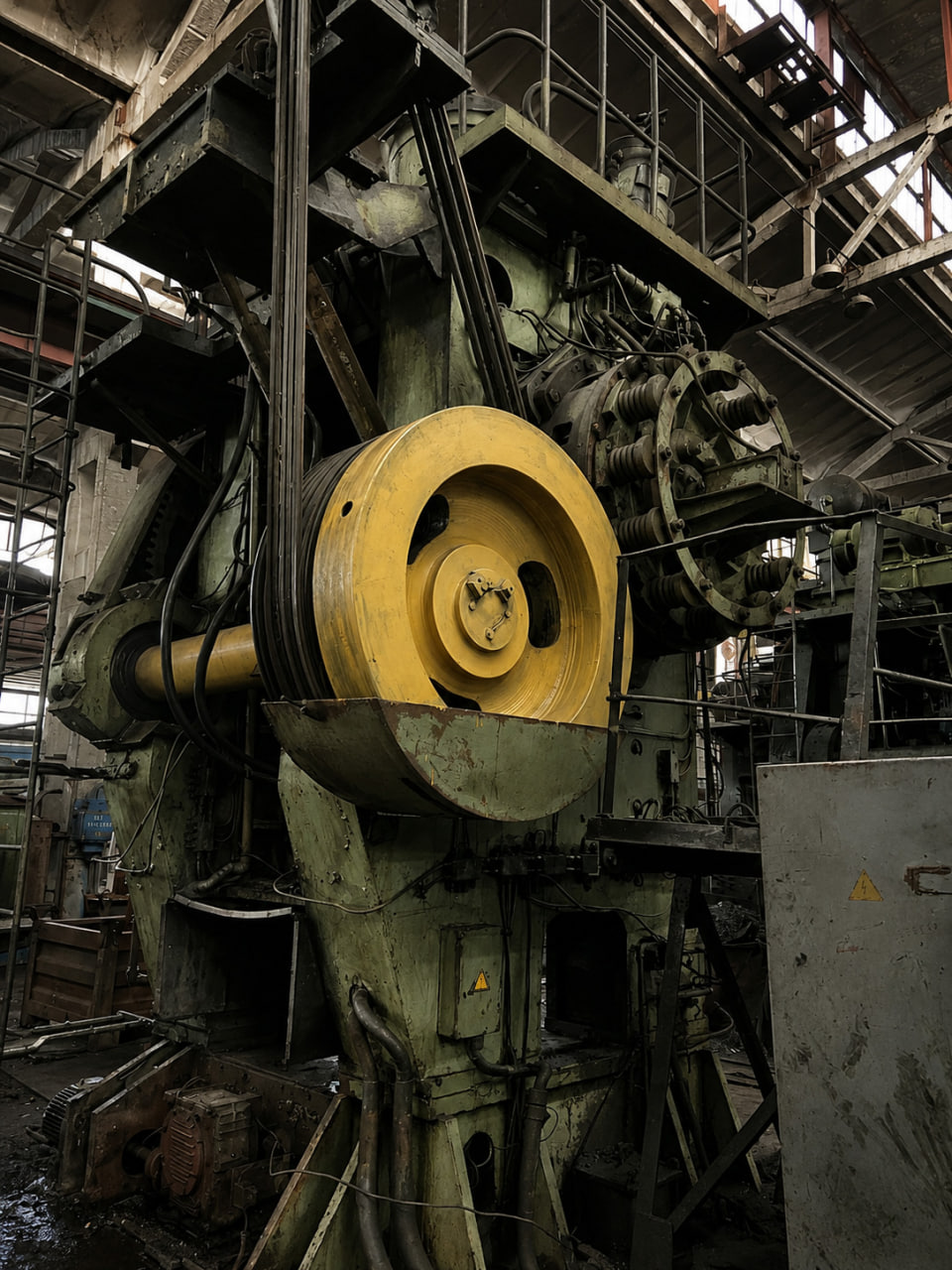

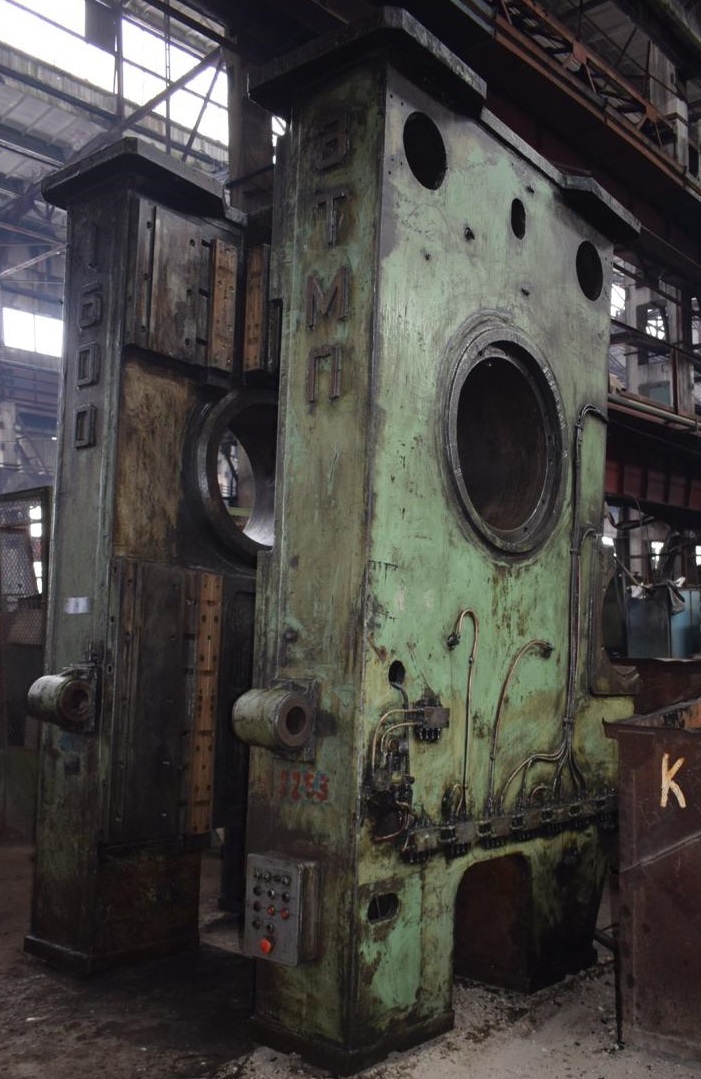

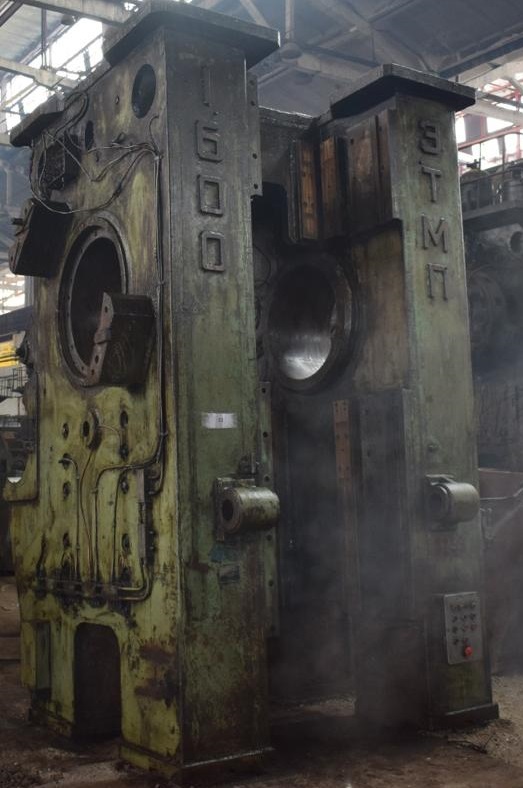

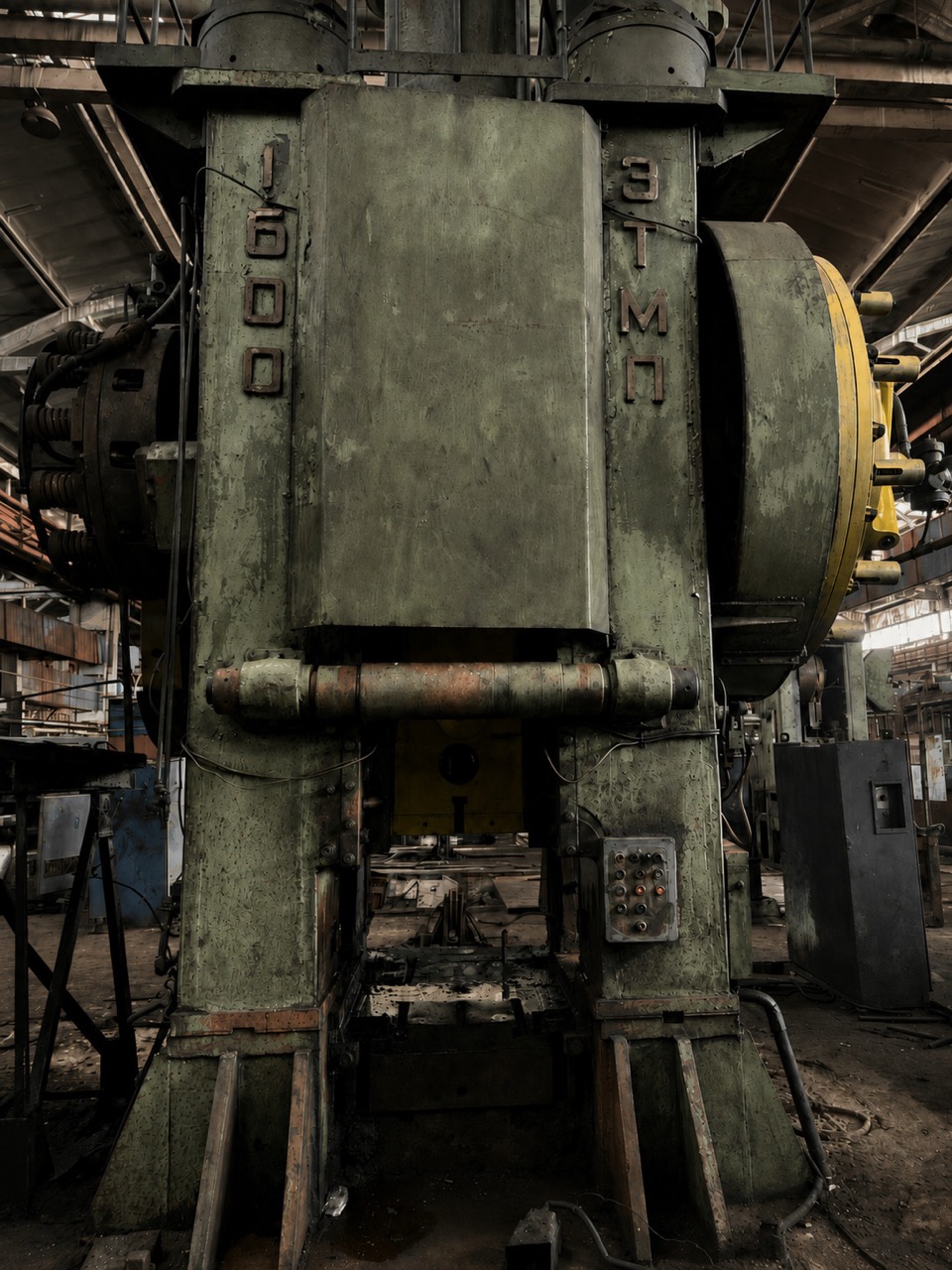

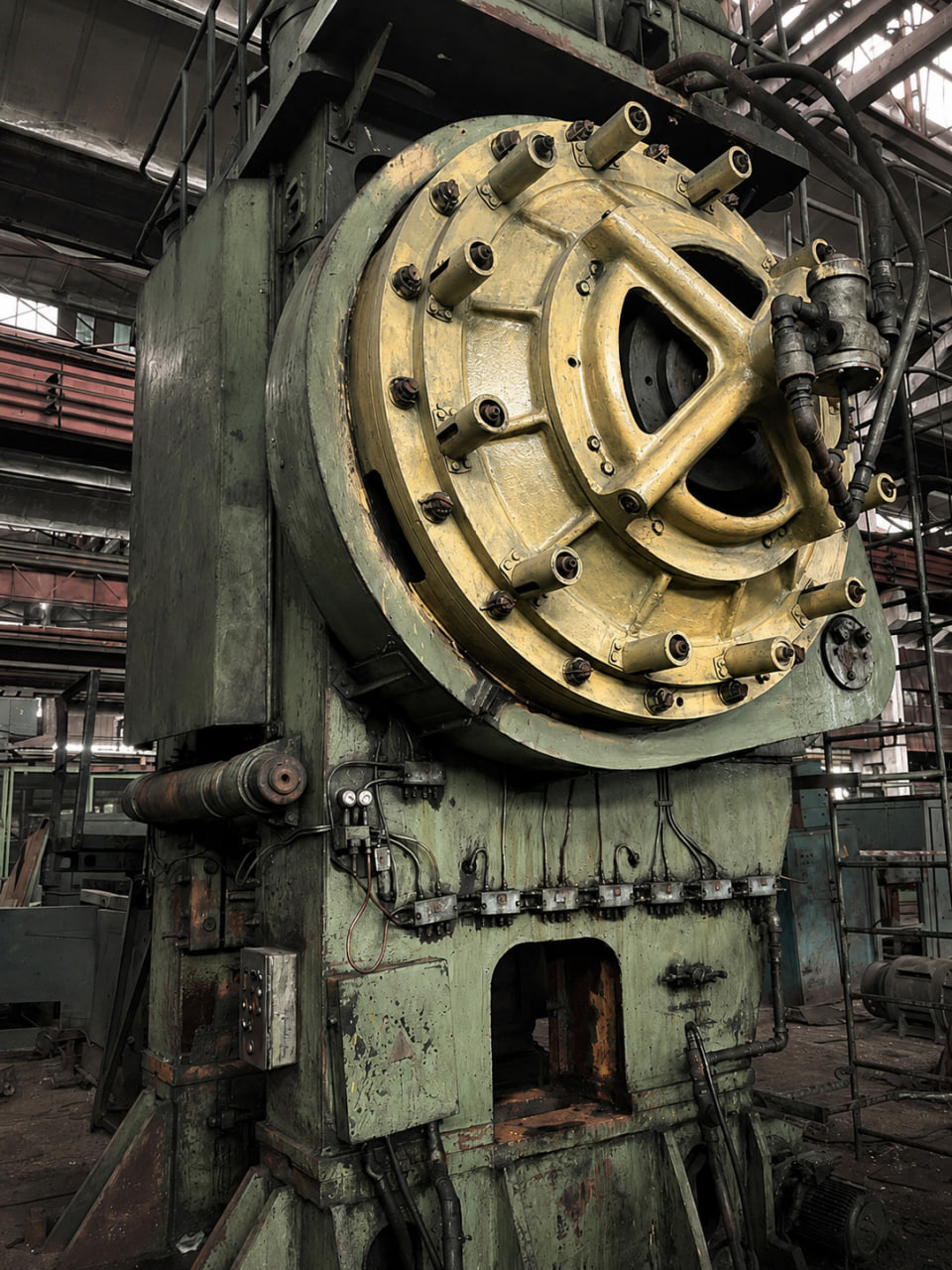

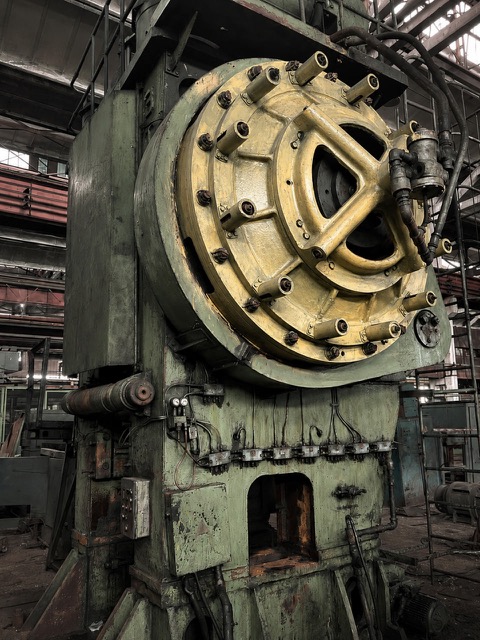

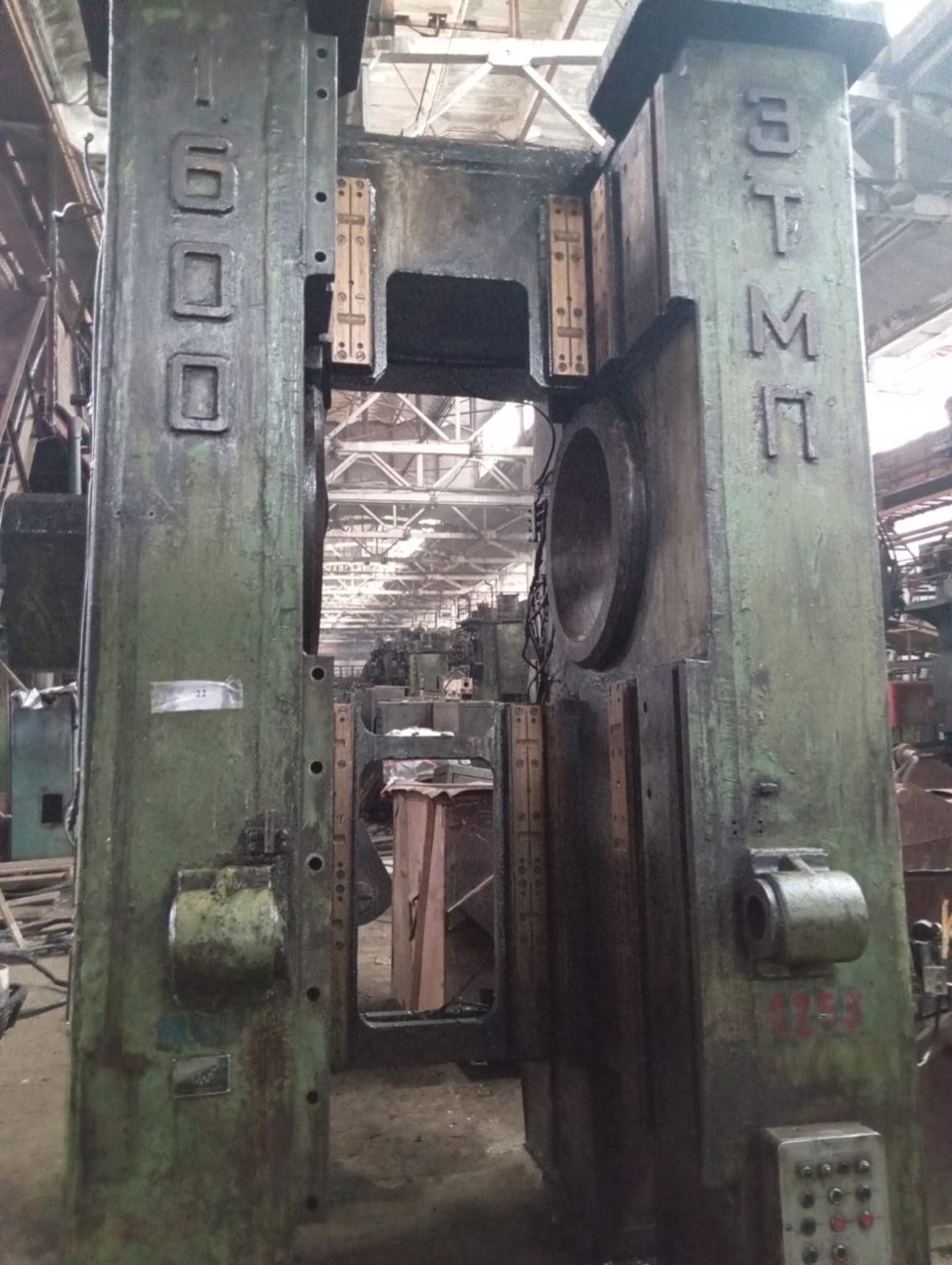

The TMP Voronezh K8542 is a 1600-ton mechanical hot forging press for upset forging, preforming, blocking and finish forging of large steel components. The cast-steel frame and robust mechanical drive support high output in heavy forging production.
Operating at up to 75 strokes per minute with a 300 mm slide stroke and 660 mm minimum closed height, the press delivers the energy and force consistency required for hot working of billets. The 940 × 1200 mm table and 860 × 910 mm slide accommodate large multi-impression dies for preform, blocking and finish sequences within a single setup.
The 10 mm adjustment range allows fine shut height control to compensate for die wear or tooling changes. The 560 × 600 mm lateral window supports billet loading with manipulator or robotic handling for automated forging lines.
With a 110 kW main motor and overall dimensions of 5060 × 3940 × 5125 mm, the K8542 suits automotive, railway and heavy engineering production. Typical parts include crankshafts, steering knuckles, axle beams and connecting rods.
The machine is located in Europe and available for inspection. TRIGA can arrange full technical assessment, dismantling, export packing, transport securing and international delivery logistics — contact us for details.

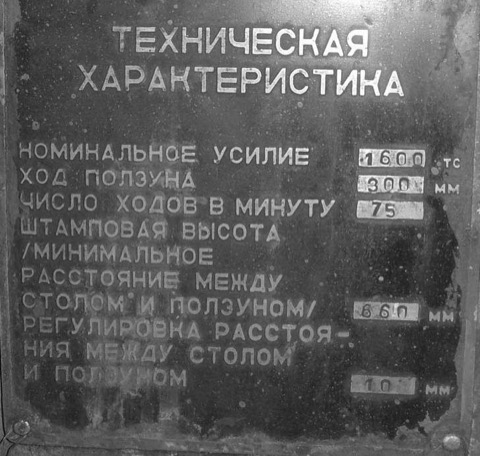

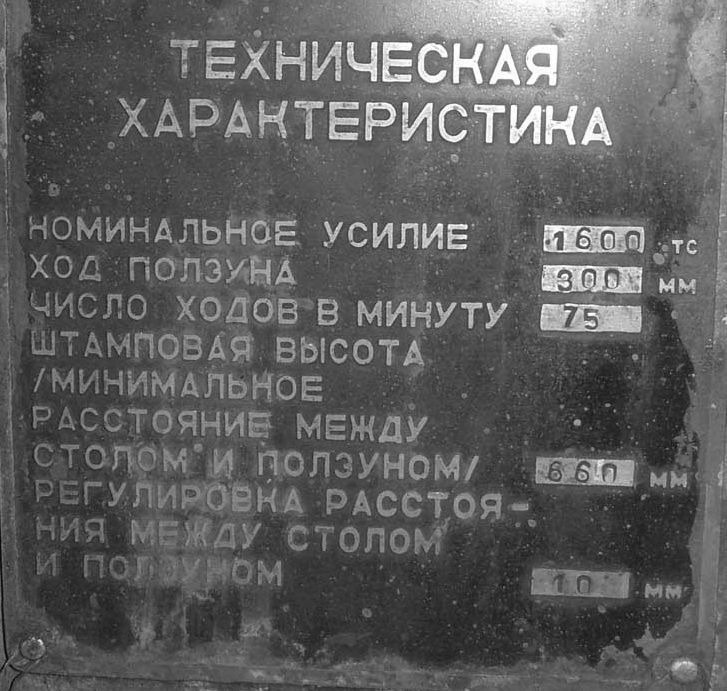

Technical Specifications
Nominal force
1600 ton
Type
Mechanical hot forging press
Slide stroke
300 mm
Strokes per minute
75 spm
Table dimensions
940 × 1200 mm
Distance adjustment (table–slide)
10 mm
Slide dimensions
860 × 910 mm
Closed height (min)
660 mm
Table height above floor
450 mm
Lateral window (h × w)
560 × 600 mm
Main motor
110 kW
Overall dimensions (L × W × H)
5060 × 3940 × 5125 mm
Weight
120 tons
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Please send us your contact details and we will provide available information about this equipment.
Common questions
Frequently Asked Questions
The K8542 is a hot listing located in Europe and can be inspected. A technical assessment can verify the 300 mm slide stroke, 75 spm drive and general forging-line readiness.
A powered inspection may be arranged if the machine remains connected and site rules permit it. Otherwise, a detailed static inspection and remote video review can be provided.

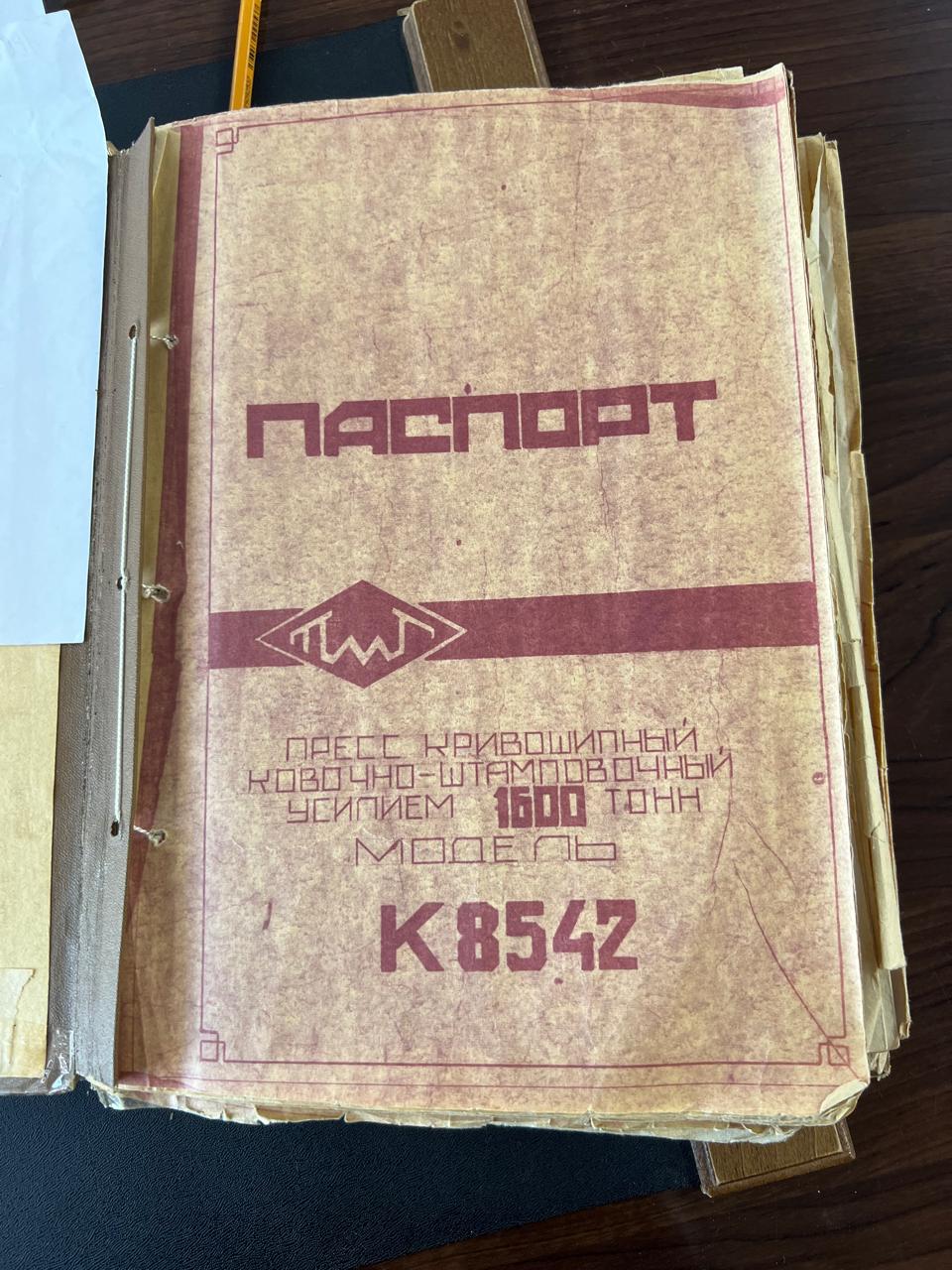

Available foundation plans, manuals, electrical diagrams and table drawings can be reviewed before purchase. The confirmed handover list forms part of the offer.
Tool compatibility depends on footprint, shut height, clamping and required energy. Buyers should provide die drawings so they can be checked against the 660 mm closed height and 10 mm adjustment.
The removal package can cover engineered dismantling, heavy lifting, packing, securing and abnormal-load transport. Export and customs documents can be coordinated for the destination country.
A firm date follows the site survey, payment and confirmation of cranes and heavy-haul permits. The 5.125 m overall height makes route and dismantling planning important.
