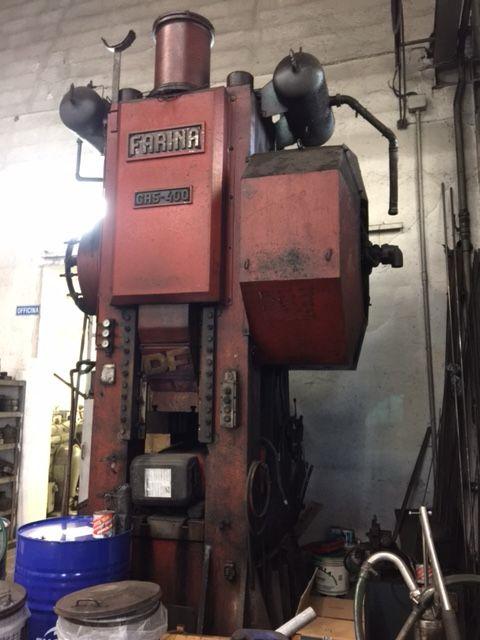

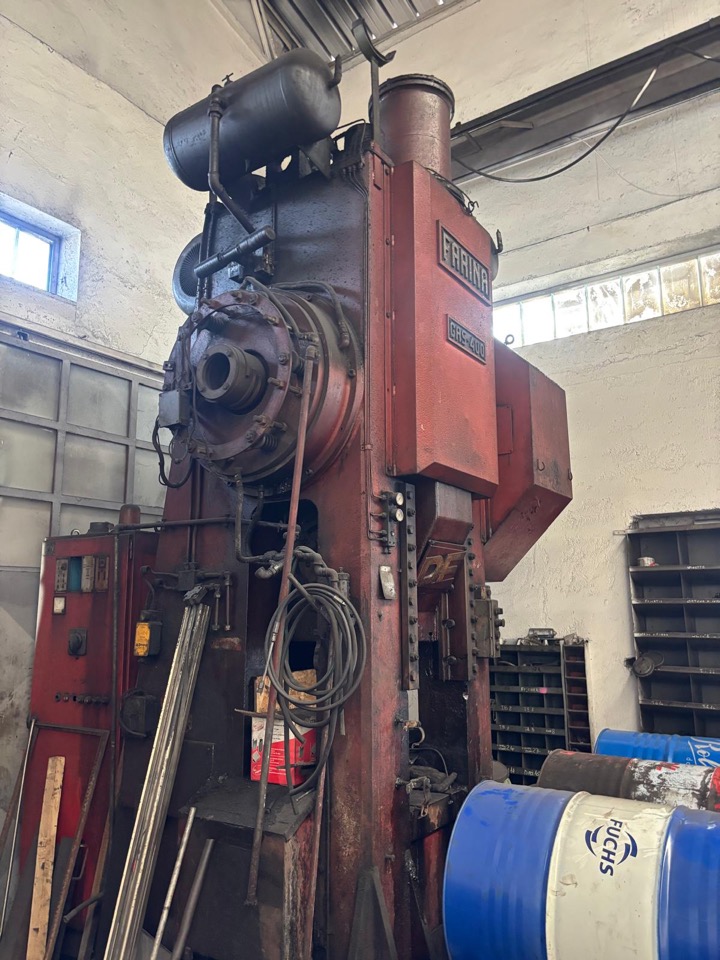

The Farina GAS-400 is a 400 ton mechanical hot forging press built by Domenico Farina in Italy in 1981, serial number F2066. The press is sold used and as found.
It runs a 180 mm ram stroke at 120 strokes per minute, with a table measuring approximately 560 × 800 mm. A 40 HP (29.4 kW) main motor drives the press on 380/660 V supply, and a DropsA automatic grease lubrication system services the running gear. Overall dimensions are approximately 2200 × 1800 × 4000 mm.
The GAS-400 suits forging work on automotive and machinery components, hand tools and similar hot-formed steel parts.
The press is located in Europe and available for inspection. Contact TRIGA for a technical assessment and price — contact us.
Technical Specifications
Year
1981
Nominal force
400 tons
Ram stroke
180 mm
Strokes per minute
120 spm
Table size
approx. 560 × 800 mm
Main motor
40 HP / 29.4 kW
Voltage
380/660 V
Lubrication system
DropsA automatic grease lubrication
Dimensions
approx. 2200 × 1800 × 4000 mm
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Please send us your contact details and we will provide available information about this equipment.
Common questions
Frequently Asked Questions
Yes, this press is listed as available and located in Europe. It is sold used and as found.
Yes. We arrange on-site inspections by appointment, and we can share additional photos or a video walk-through for buyers who cannot travel.
TRIGA provides the machine's technical data — year, serial number, HS code and specifications — plus transport documents such as invoice, packing list, CMR or Bill of Lading. Certificates and customs declarations are handled by the buyer's broker or freight forwarder; TRIGA does not issue certificates for used equipment.
Yes. Our scope covers dismantling, lifting, loading, export documents, customs and delivery. At approximately 2200 × 1800 × 4000 mm, the GAS-400 needs heavy-haul planning, and we plan the route and crane work around the machine's dimensions and location.
Nominal force is 400 tons, with a 180 mm ram stroke at 120 strokes per minute and a table of approximately 560 × 800 mm. The press runs on a 40 HP (29.4 kW) motor at 380/660 V, with a DropsA automatic grease lubrication system.
