Quick Facts
| Equipment ID | 106 |
| Category | Trimming Press |
| Brand | TMP Voronezh |
| Model | KA2536 |
| Nominal force | 400 ton |
| Condition | Information upon request |
| Availability | Available |
Machine Description

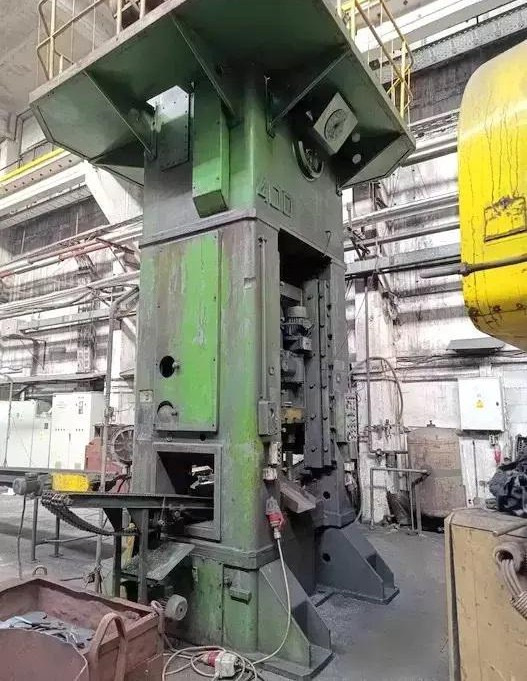

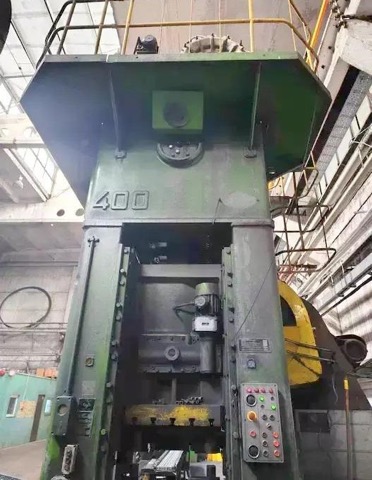

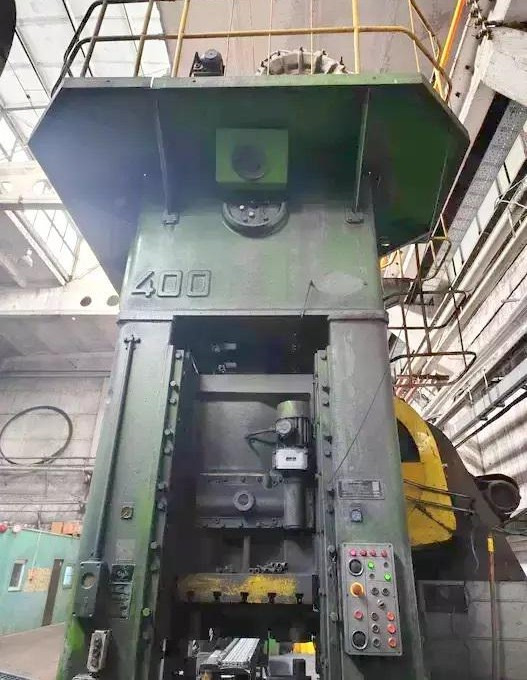

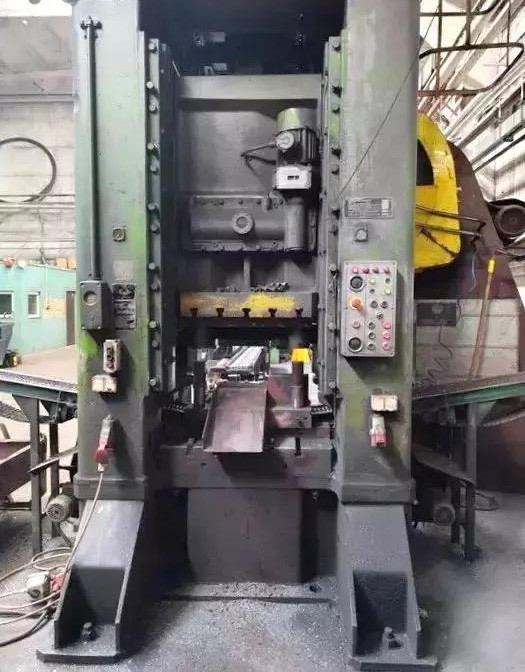

The TMP Voronezh KA2536 is a 400-ton mechanical trimming press for flash removal after forging.
The press has a 250 mm slide stroke, 160 mm adjustment range, 1000 × 1000 mm working table and 800 × 800 mm slide. Its 40 kW main motor runs at 25 strokes per minute. Compare the trim-die drawing, required opening and clamping arrangement with these dimensions before an inspection.
Buyers comparing the available TMP range can use the TMP Voronezh press guide to separate trimming, hot forging and knuckle joint operations. The machine is located in Europe and available for inspection. Contact TRIGA to confirm the inspection, dismantling and transport scope.
Technical Specifications
| Manufacturer | TMP Voronezh |
| Model | KA2536 |
| Nominal force | 400 tons |
| Slide stroke | 250 mm |
| Adjustment range | 160 mm |
| Operating speed | 25 strokes/min |
| Working table size | 1000 × 1000 mm |
| Slide dimensions | 800 × 800 mm |
| Main motor power | 40 kW |
| Weight | 32 tons |
| Weight with cushion | 36 tons |
| Overall dimensions (L×W×H) | 3140 × 3410 × 5930 mm |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Request Information About This Machine
Please send us your contact details and we will provide available information about this equipment.
Frequently Asked Questions
The 400-ton trimming press is listed as available. Inspection can cover slide alignment, the 250 mm stroke, 160 mm adjustment and 25 spm drive.
An on-site technical visit can be arranged, subject to site access. Additional photographs or a remote video inspection can be provided before travel.
The working table is 1000 × 1000 mm and the slide is 800 × 800 mm. Die height, clamping, load position and required stroke must also be checked from the tooling drawing.
Available manuals, electrical diagrams, foundation plans and maintenance records will be itemized before sale. Unavailable documents will be disclosed.
The removal study will determine whether the cushion and auxiliaries travel attached or separately. Crane work, packing, transport securing, export papers and customs can be included.
Dispatch follows inspection, payment and confirmation of site lifting access. Carrier permits and the final 32- or 36-ton shipping configuration affect the date.
