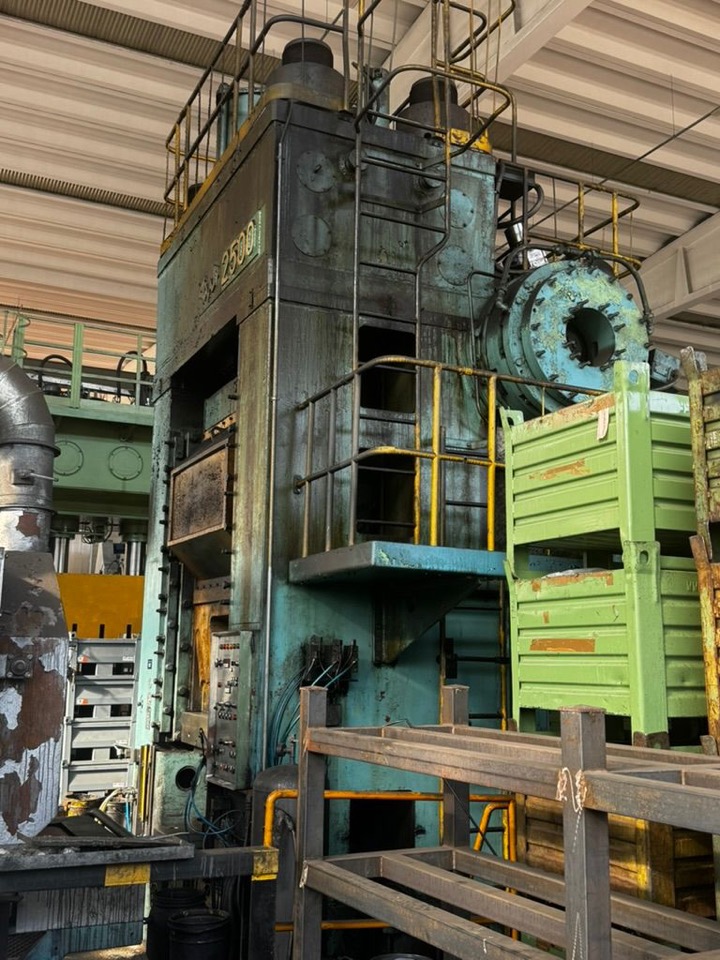

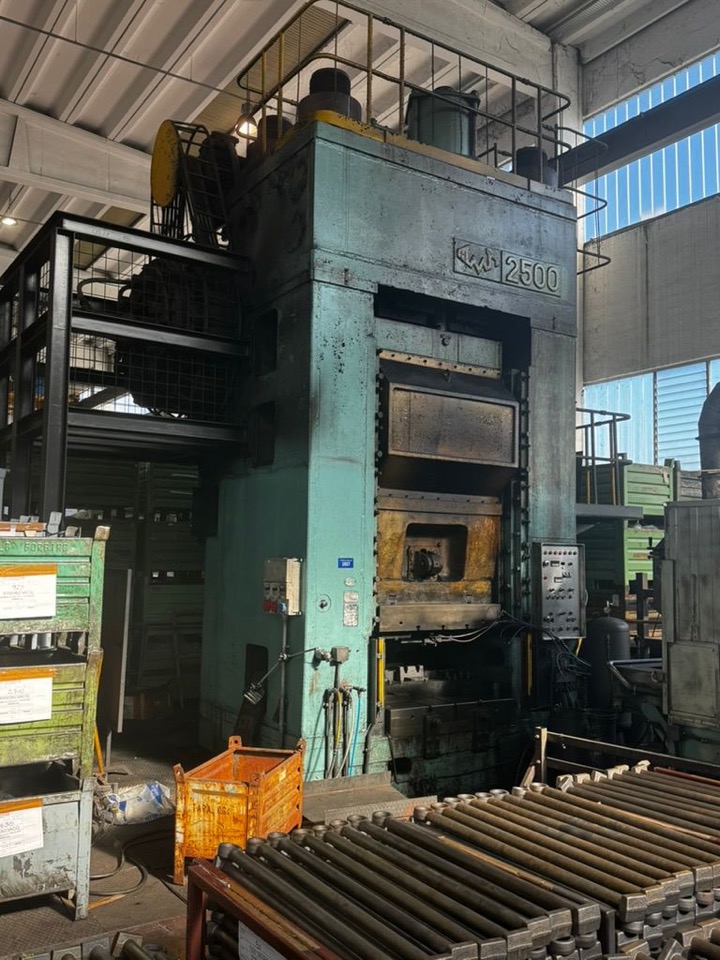

The TMP Voronezh 504.003.844 (KB8044) is a 2500-ton knuckle joint press from 1984 for coining, calibration and high-force forming. It has a 190 mm ram stroke, 14–20 strokes per minute and a 1530 × 1530 mm table.
Check the die footprint, 560 mm shut height and 15 mm ram adjustment against the tooling drawing before an inspection. The press weighs 125 tons, has a 77 kW, 380 V main motor and measures 4920 × 3340 × 5980 mm overall.
Buyers comparing the available TMP range can use the TMP Voronezh press guide to separate hot forging, trimming and knuckle joint operations. The machine is located in Europe and available for inspection. Contact TRIGA to confirm the inspection, dismantling and transport scope.
Technical Specifications
Nominal force
2500 ton
Ram stroke
190 mm
Stroke rate
14–20 spm
Shut height
560 mm
Ram adjustment
15 mm
Table dimensions
1530 × 1530 mm
Main motor
77 kW, 380 V
Overall dimensions (L×W×H)
4920 × 3340 × 5980 mm
Weight
125 tons
Year
1984
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Please send us your contact details and we will provide available information about this equipment.
Common questions
Frequently Asked Questions
Yes, this 2500-ton knuckle joint press is located in Europe and available. We arrange inspection, share technical documentation and answer specification questions directly.

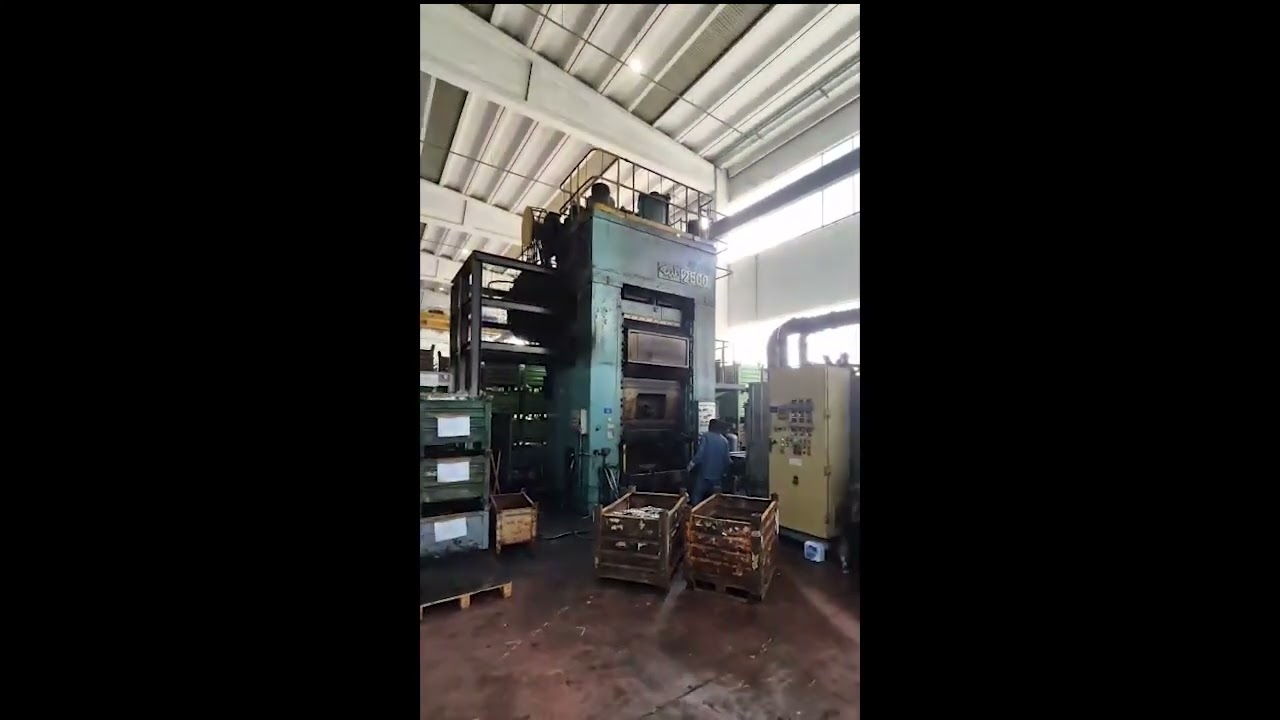

Yes, the video on this page shows the press running. We film the machines we offer so buyers can assess them remotely before an inspection visit.
The press has a 1530 × 1530 mm table, 190 mm ram stroke and 560 mm shut height. Its operating rate is 14 to 20 spm.
We collect the operating manuals, foundation drawings and electrical documentation that survive with each machine, including data for drives like this 77 kW, 380 V unit, and we confirm the list case by case.
Yes. TRIGA arranges qualified dismantling — a teardown study, heavy cranes and abnormal-load permits, engineered load securing — and prepares the commercial and transport documents. Your customs broker or freight forwarder handles declarations, clearance and any origin certificate required.
