Quick Facts
| Equipment ID | 107 |
| Category | Eccentric Press |
| Model | KA2534 |
| Nominal force | 250 ton |
| Condition | Information upon request |
| Availability | Available |
Machine Description

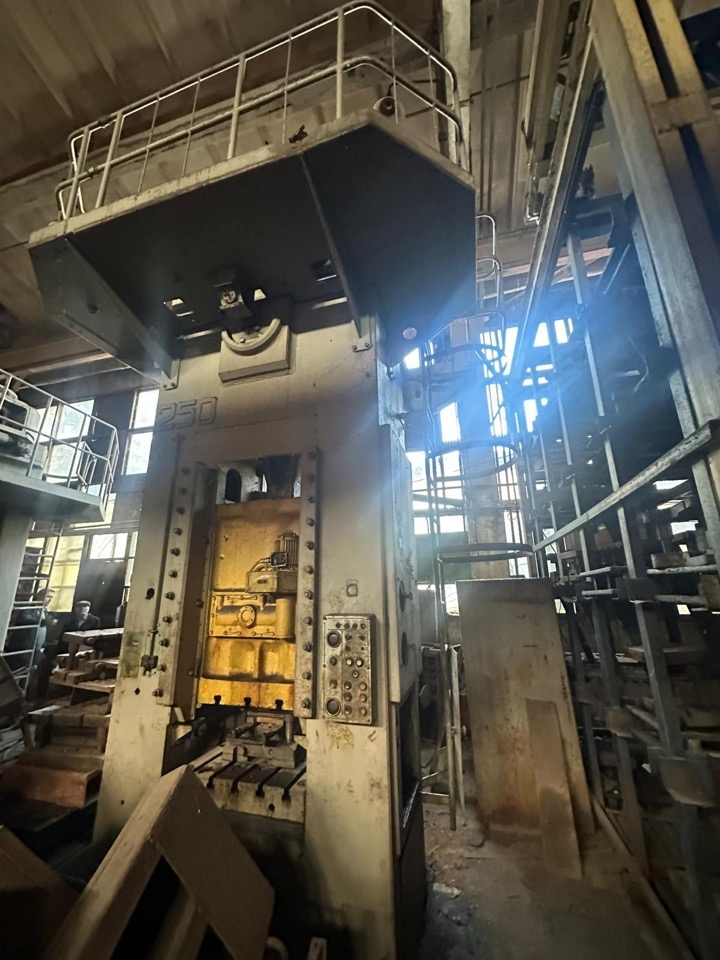

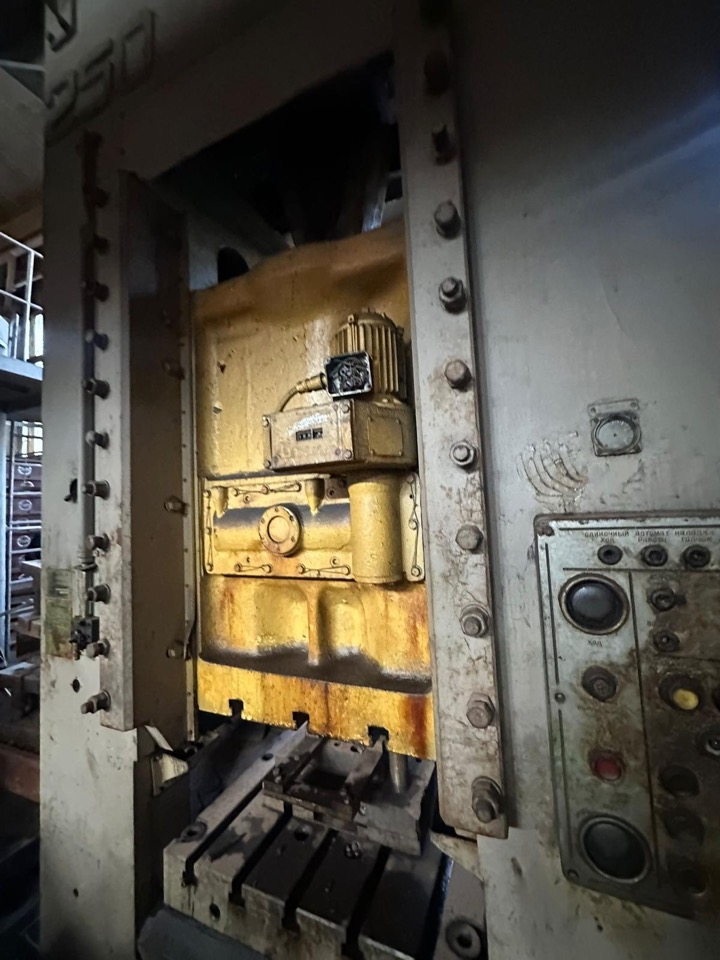

The KA2534 is a 250 ton single-crank, enclosed, simple-action press for cold sheet-metal stamping. The operating manual assigns KA2534 to a range of cold stamping operations on sheet metal.
The passport specifies a 200 mm slide stroke, 560 mm table-to-slide distance at the lower position, 140 mm adjustment, 800 × 800 mm table and 650 × 650 mm slide. The hydropneumatic cushion has a 100 mm stroke, 50 ton maximum receiving force and 6.6 ton maximum ejector force.
The KA2534 vs KB9534 comparison explains why the KA2534 is a cold stamping press while KB9534 is intended for hot and cold flash trimming.
The machine is in Europe and available for inspection. Contact TRIGA to confirm access, documentation, dismantling and transport scope.
Technical Specifications
| Model | KA2534 |

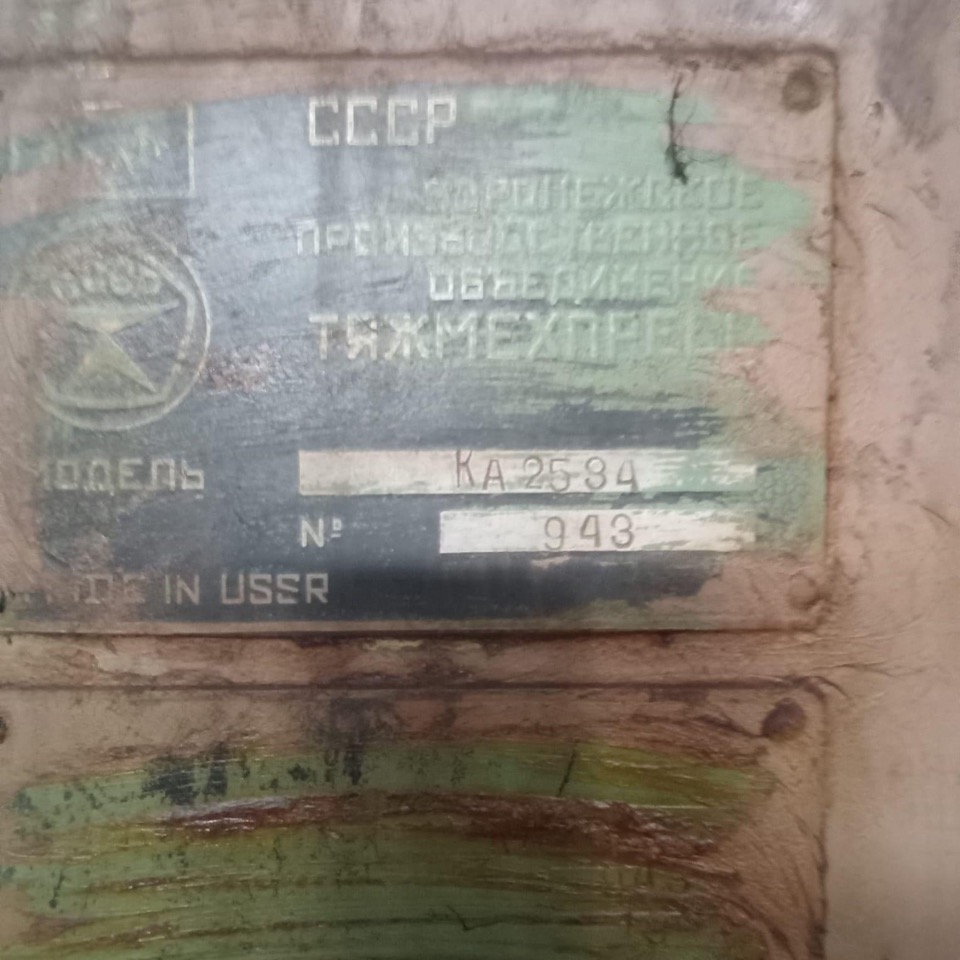

| Serial Number | 943 |
| Press type | Single-crank, enclosed, simple action |
| Nominal force | 250 ton (2500 kN) |
| Slide travel at nominal force | 12 mm |
| Slide stroke | 200 mm |
| Minimum continuous strokes | 32 strokes/min |
| Table-to-slide distance at lower position | 560 mm |
| Slide adjustment | 140 mm |
| Table size | 800 × 800 mm |
| Table opening | 500 × 500 mm |
| Slide size | 650 × 650 mm |
| Bolster plate thickness | 140 mm |
| Table height above floor | 690 mm |
| Hydropneumatic cushion stroke | 100 mm |
| Maximum cushion receiving force | 50 ton |
| Maximum cushion ejector force | 6.6 ton |
| Dimensions in plan (L × W) | 3000 × 2970 mm |
| Height above floor | 5180 mm |
| Machine mass with hydropneumatic cushion | 25,700 kg |
| Effective stiffness | 155 ton/mm |
| Supply air pressure | 5 to 7 kgf/cm² |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Request Information About This Machine
Please send us your contact details and we will provide available information about this equipment.
Frequently Asked Questions
The KA2534 operating manual states that this 250 ton model is designed for various cold sheet-metal stamping operations.
The passport gives a 200 mm slide stroke, 560 mm table-to-slide distance at the lower position, 140 mm adjustment, 800 × 800 mm table and 650 × 650 mm slide.
The passport specifies a hydropneumatic cushion with 100 mm stroke, 50 ton maximum receiving force and 6.6 ton maximum ejector force.
The manual assigns KA2534 to cold sheet-metal stamping and KB9534 to hot and cold flash trimming of forgings. Both are 250 ton models. KA2534 has a 200 mm slide stroke; KB9534 has a 320 mm stroke.
The passport gives a 25,700 kg mass with hydropneumatic cushion. TRIGA can define disconnection, lifting, loading, securing and transport after the pickup and delivery sites are confirmed.
Any used-equipment warranty must be written into the offer and will reflect the inspection or repair scope. Otherwise, acceptance is based on the verified condition before shipment.
