Technical Comparison

KA2534 vs KB9534: 250 Ton Stamping vs Flash Trimming Press

This KA2534 vs KB9534 250 ton press comparison explains the difference between cold sheet-metal stamping and hot or cold flash trimming of forgings.

Published: 8 Sep 2026

Match the press to the operation

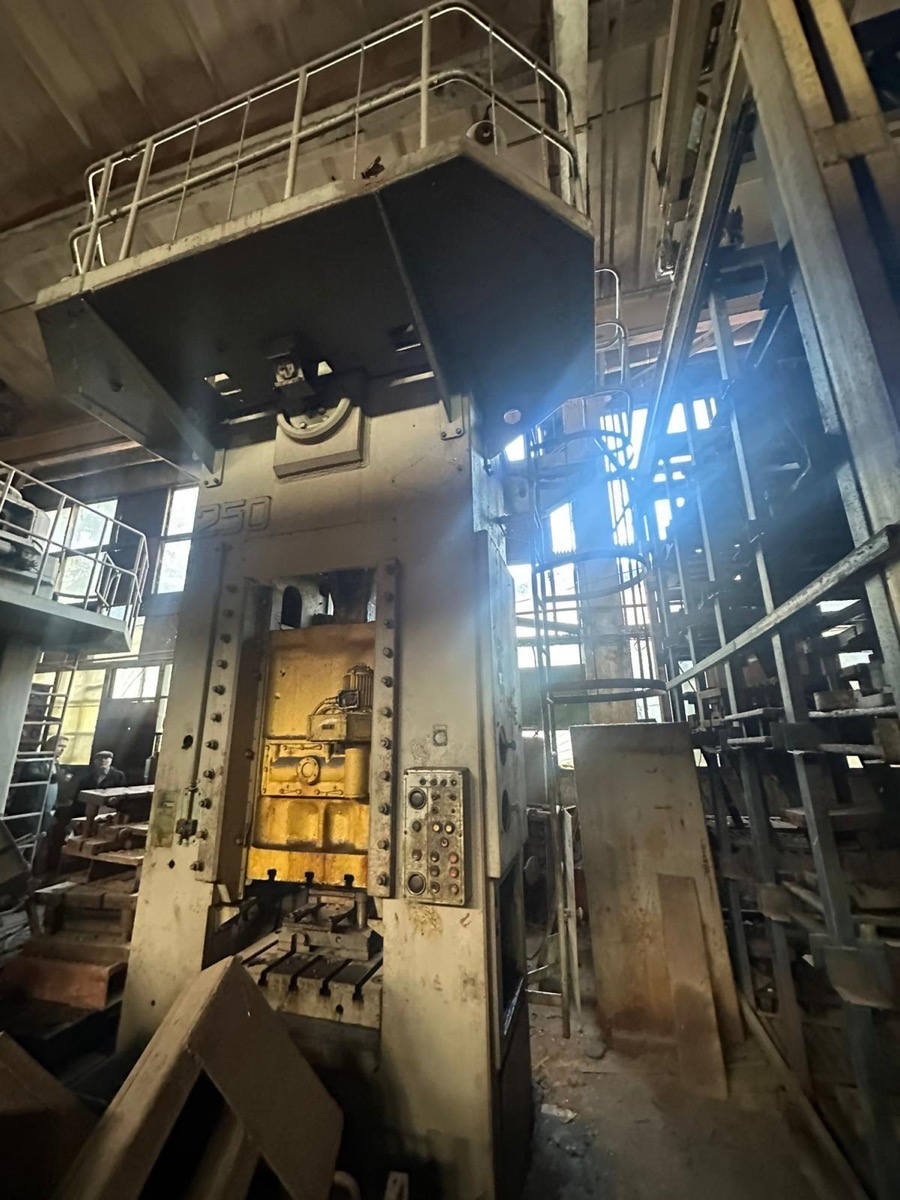

KA2534: sheet-metal stamping

Choose KA2534 for cold sheet-metal stamping. The passport gives 250 ton force, a 200 mm stroke, 800 × 800 mm table and 650 × 650 mm slide.

KB9534: flash trimming

Choose KB9534 for hot or cold flash trimming of forgings. The passport gives KB9534 a 320 mm stroke.

Force is one value

Both models have 250 ton nominal force. Their application, stroke, travel at nominal force and table-to-slide distance differ.

KA2534 and KB9534 250 Ton Press Specifications

Different values

Parameter	KA2534	KB9534
Slide travel at nominal force	12 mm	8 mm
Slide stroke	200 mm	320 mm
Table-to-slide distance at lower position	560 mm	530 mm
Mass without hydropneumatic cushion	23,200 kg	23,300 kg
Mass with hydropneumatic cushion	25,700 kg	25,800 kg

Shared specifications

Parameter	KA2534 and KB9534
Nominal force	250 ton
Slide adjustment	140 mm
Slide size	650 × 650 mm
Table size	800 × 800 mm
Table opening	500 × 500 mm
Bolster plate thickness	140 mm
Table height above floor	690 mm
Hydropneumatic cushion stroke	100 mm
Maximum cushion receiving force	50 ton
Maximum cushion ejector force	6.6 ton
Dimensions in plan (L × W)	3000 × 2970 mm
Height above floor	5180 mm
Effective stiffness	155 ton/mm
Supply air pressure	5 to 7 kgf/cm²

Source and scope

The application statements come from page 4 of the KA2534 operating manual. The numerical values come from page 69, table I4 of document KA2534-00-001 RE. The table states conformity with GOST 10026-75.
