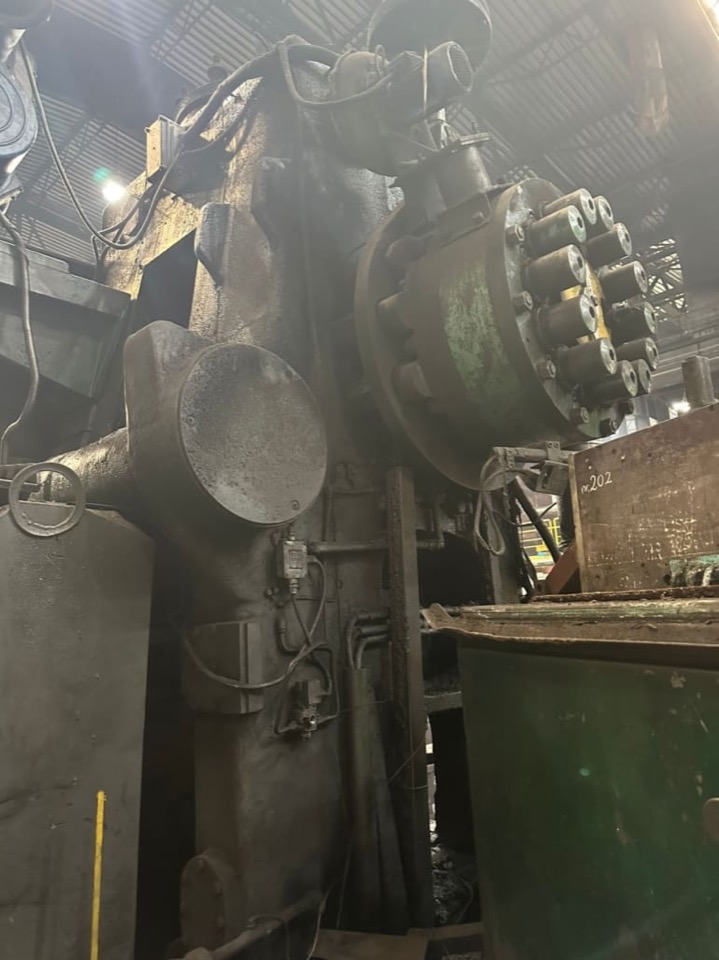

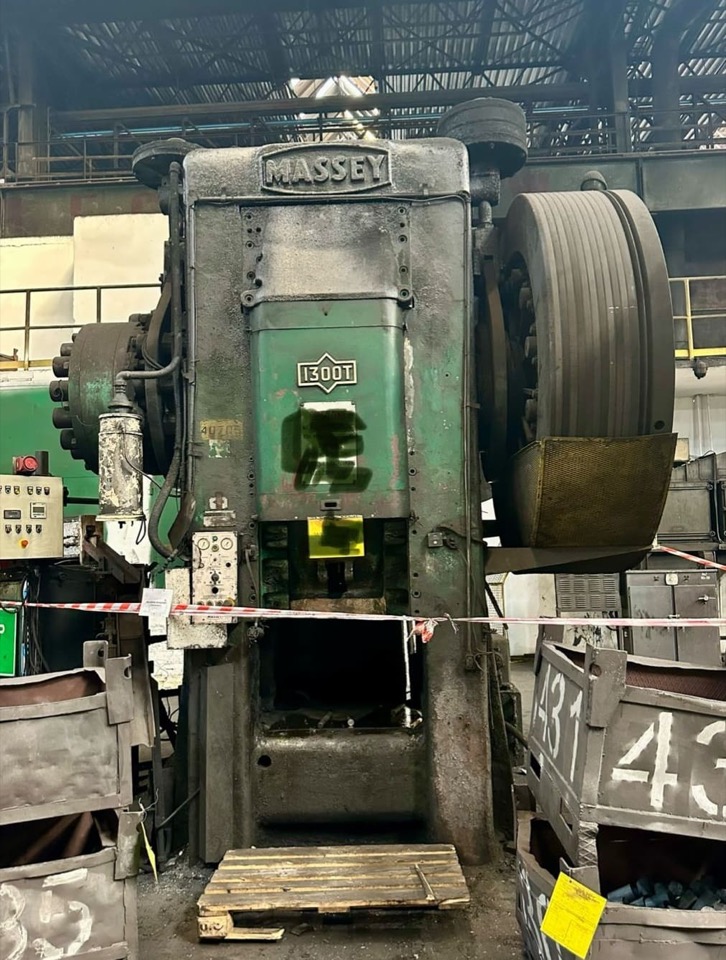

The Massey 1300 ton hot forging press is a mechanical press for hot forging of large steel components. Operating at 90 spm with a 254 mm stroke and 50 kW motor, it handles high-volume automotive and engineering forging.
This machine is not currently available. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
Nominal force
1300 ton
Stroke
254 mm
Strokes per minute
90 spm
Motor rating (continuous)
50 kW
Motor speed at full load
560 rpm
Supply system
380 V (±20 V), 3ph, 50 Hz
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
This press has been sold. Contact TRIGA for comparable hot forging equipment in the 1000–1600 ton range.
A live video walk-through and additional photographs can be requested before travel. An on-site inspection can then focus on the drive, guides, controls and lubrication system.
Motor data, electrical drawings and operating documents will be supplied when present in the machine file. Missing documents are identified before the sales agreement.
The quotation can cover dismantling, crane loading, transport frames, export formalities and customs support. Exact costs require the machine dimensions, pickup site and delivery address.
Delivery is scheduled after technical acceptance and removal planning. Carrier capacity, permits and border procedures determine the final lead time.
