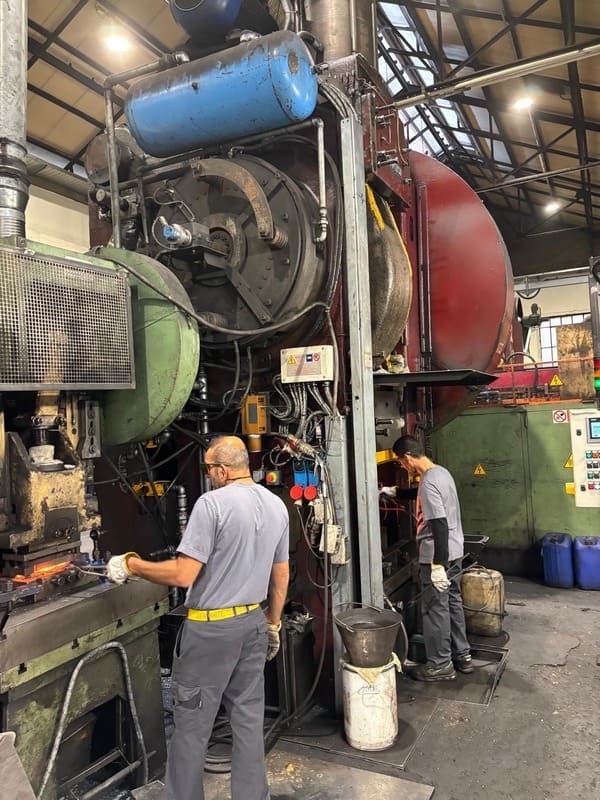

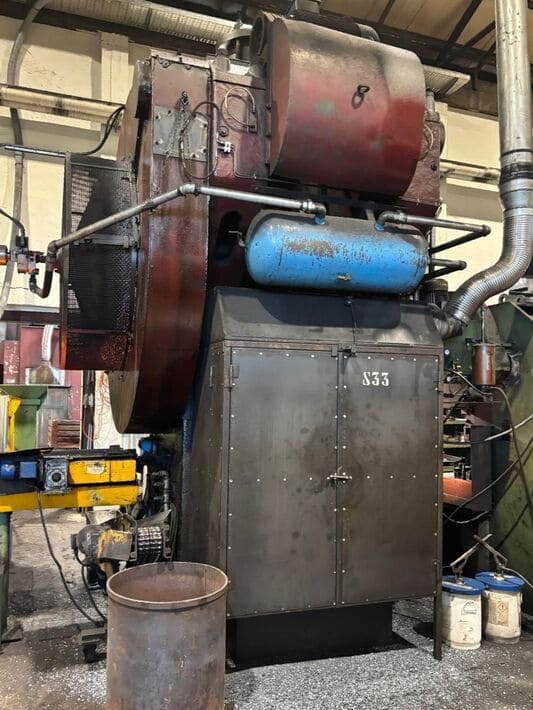

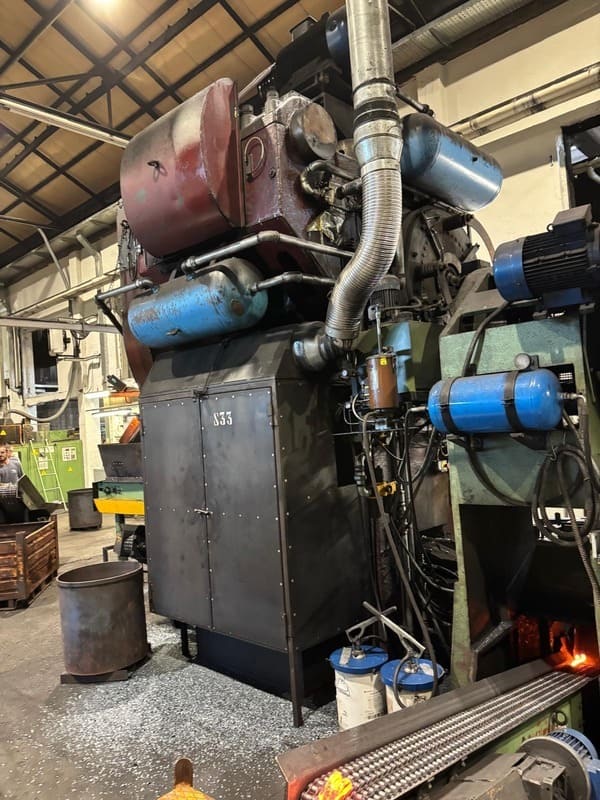

The EUMUCO SP 100 is a 1000-ton mechanical hot forging press manufactured in 1976, rebuilt and in working condition at the time of sale. The electrical cabinet was completely renewed in 2021; the mechanical structure has not been altered.
Operating at 100 strokes per minute with a 250 mm slide stroke and 820 mm shut height, the SP 100 is suited to high-output hot forging production. The 850 × 1250 mm table and 730 × 760 mm slide accommodate standard forging die sets for automotive and engineering components. The four-point slide guiding system provides stability and die alignment under sustained high-force operation.
The machine is equipped with a hydraulic lower ejector (100 mm stroke) and wedge-based slide adjustment (17.5 mm range), supporting flexible die setup and part ejection requirements. At 50 tons, the SP 100 is a compact machine with a long production history in European forging shops.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
Year
1976
Press capacity
1000 tons
Table size
850 × 1250 mm
Slide size
730 × 760 mm
Slide stroke
250 mm
Strokes per minute
100 spm
Shut height
820 mm
Slide adjustment
17.5 mm
Slide adjustment system
Wedge
Number of pressure points
1
Number of slide guides
4
Front opening between uprights
880 mm
Side opening between uprights
300 mm
Motor power
55 kW
Weight
50 tons
Last overhaul
2021

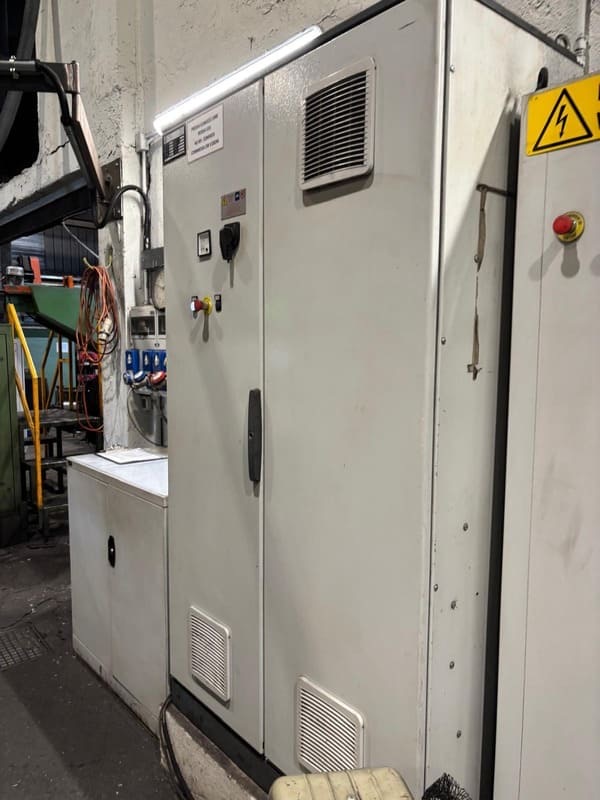

Electrical cabinet
Completely renewed in 2021
Additional
Hydraulic lower ejector, stroke 100 mm
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
This press is sold. We keep the page online as a technical reference, and we source comparable hot forging presses in the 1000-ton class. Send us your requirement and we will check current stock.
The press was rebuilt and in working condition, with the electrical cabinet renewed during the 2021 overhaul. We disclose the same level of condition detail for every machine we offer.
Yes. For machines we sell, we hand over the available operating manuals, electrical documentation and overhaul records, and we confirm the exact document list before purchase.
We arrange on-site inspections for every machine we offer, including powered tests where the site allows. For remote buyers we organise video walk-throughs and additional photos.
Yes. Our scope covers dismantling, lifting, loading, export documents, customs and delivery. We plan the route and crane work around the machine's dimensions and location.
