Quick Facts
| Equipment ID | 118 |
| Category | Trimming Press |
| Brand | TMP Voronezh |
| Model | K2536 |
| Nominal force | 400 ton |
| Condition | Information upon request |
| Availability | Sold |
Machine Description

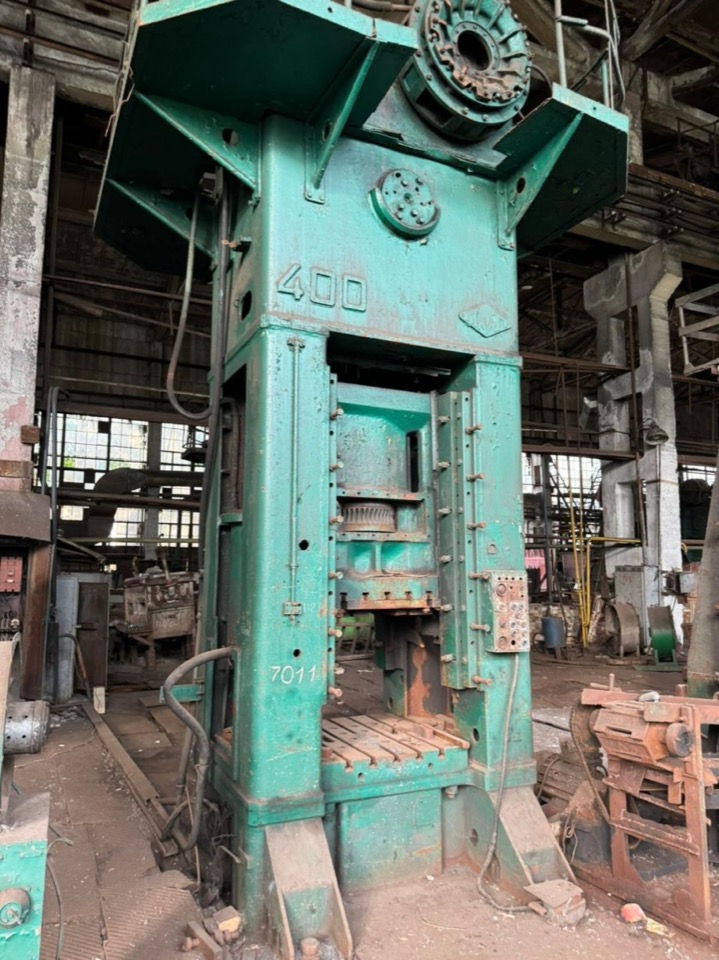

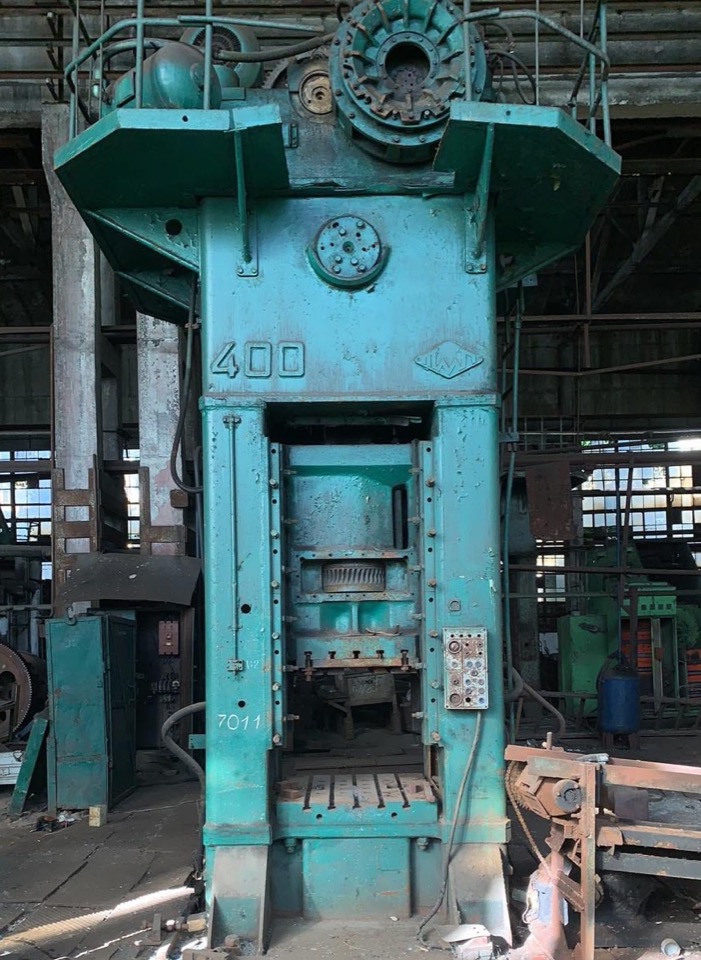

The Voronezh K2536 is a 400-ton mechanical trimming press for post-forging flash removal and trimming on medium-to-large forged components. With a 250 mm slide stroke and 25 spm rate, the K2536 provides reliable trimming capacity for forging line integration.
The 1000 × 1000 mm table and 800 × 800 mm slide accommodate standard trimming die sets for medium and larger forgings. The 670 mm shut height and 160 mm slide adjustment support different tooling configurations.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
| Model | K2536 |
| Manufacturer | Voronezh |
| Type | Trimming press |
| Nominal force | 400 tons |
| Slide stroke | 250 mm |
| Strokes per minute | 25 strokes/min |
| Single stroke speed | 24 strokes/min |
| Slide adjustment | 160 mm |
| Shut height | 670 mm |
| Distance between bolster and slide | 510 mm |
| Slide stroke for rated force | 12 mm |
| Slide surface | 800 × 800 mm |
| Table size | 1000 × 1000 mm |
| Main motor power | 40 kW |
| Dimensions (L × W × H) | 3470 × 3140 × 5940 mm |
| Weight | 32,000 kg |
| Condition | Used |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Frequently Asked Questions
This K2536 is sold. We search for 400-ton trimming presses against active requirements; describe your task and we will check the market.
It carried a 250 mm slide stroke, 25 spm rate, 670 mm shut height and 160 mm slide adjustment. The table measured 1000 × 1000 mm.
Yes. Our pre-sale inspection covers the slide, table and mechanical drive, and we share the findings with you before contract.
We hand over the foundation plans, manuals, electrical drawings and maintenance history that exist for each machine and confirm the package in the offer.
We guarantee conformity with the description and full condition disclosure before purchase. The written agreement defines all terms; used machinery has no operational warranty.
