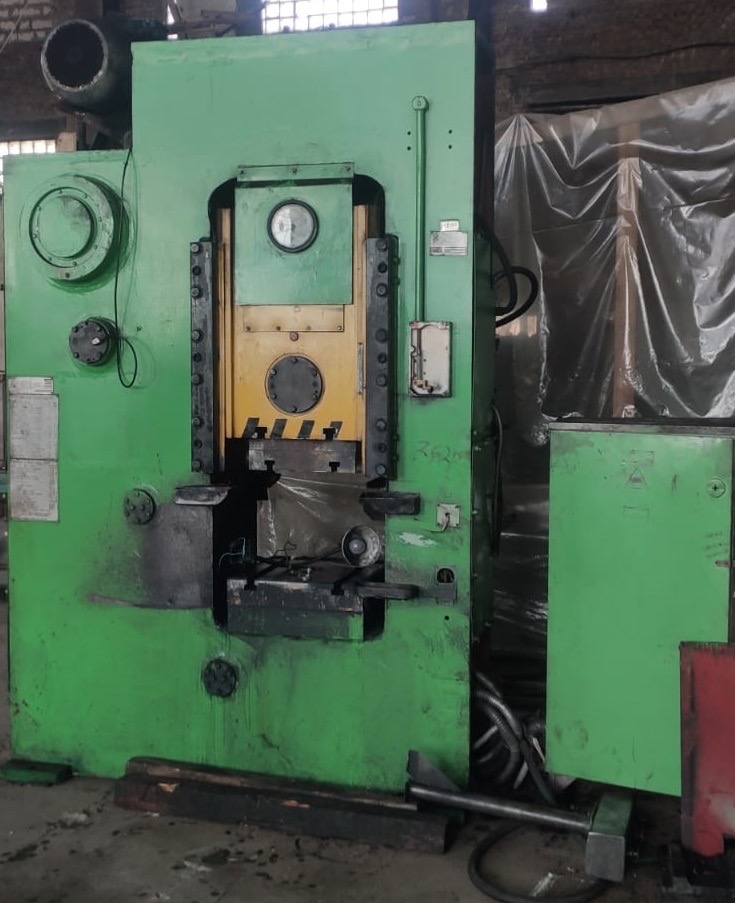

The Barnaul KB8336 is a 400-ton closed-frame knuckle-joint mechanical press for cold forging, coining, sizing, finishing and cold extrusion operations. Its knuckle-joint drive delivers high force near bottom dead centre for precise forming of small-to-medium steel components.
Model-passport data state a 130 mm slide stroke, 50 strokes per minute, a 500 × 500 mm die plate and a maximum 475 mm table-to-slide distance at the bottom position. Table-to-slide adjustment is 12 mm; upper and lower ejectors remove formed parts. Check the die drawing, centre of pressure and permitted slide-load diagram before confirming compatibility.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
Core press geometry and ejector data are transcribed from the KB8336 manufacturer passport. This archive page does not confirm the condition or fitted equipment of the sold machine.
Nominal force
400 t
Ram stroke
130 mm
Number of strokes per minute
50
Working stroke to nominal force
16 mm before bottom position
Working stroke to 25% nominal force
19 mm before bottom position
Maximum table-to-slide distance at bottom position
475 mm
Table-to-slide adjustment
12 mm
Die plate dimensions
500 × 500 mm
Die plate thickness
100 mm
Upper ejector stroke
at least 20 mm
Lower ejector force
120 kN / 12 tf
Lower ejector adjustment
20 mm
Lower ejector stroke
40 mm
Condition
Used
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
This KB8336 is sold. Compact knuckle joint presses come through our stock; tell us your force and table requirements and we will check.
The machine sold as a used press intended for forming and stamping with high force near bottom dead centre. We state the condition basis for every machine we list and back it with inspection before sale.
Model-passport data state a 500 × 500 mm die plate, a maximum 475 mm table-to-slide distance at the bottom position, 12 mm adjustment and a 130 mm slide stroke.
We supply the drawings, operating instructions and service records that accompany each unit and confirm the exact set on request.
Yes. For machines we offer we arrange demonstrations at the current site where power allows, and we film the run for buyers who cannot attend.
