Quick Facts
| Equipment ID | 120 |
| Category | Eccentric Press |
| Brand | Smeral |
| Model | LE 400 C |
| Nominal force | 400 ton |
| Condition | Information upon request |
| Availability | Sold |
Machine Description

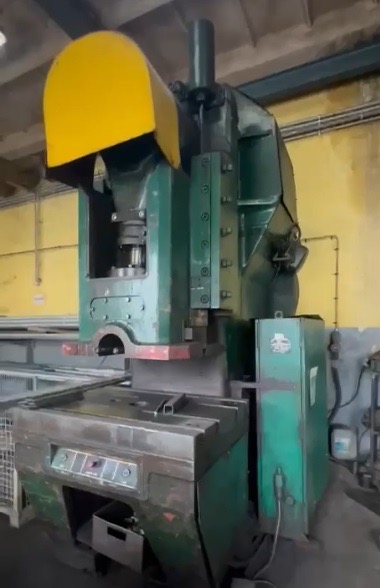

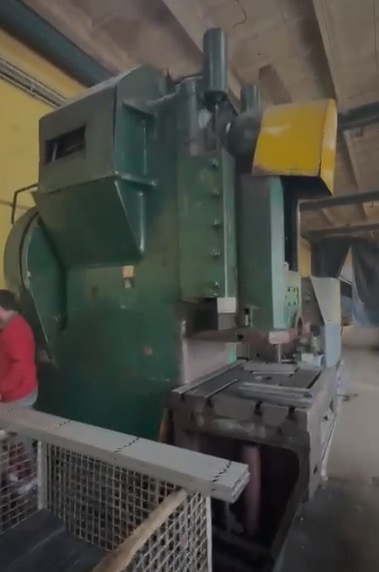

The ZTS SMERAL LE 400 C is a 400-ton eccentric mechanical press (1985) for stamping, blanking and forming operations. With an 80 mm stroke and two-speed operation (35 / 45 spm), the LE 400 C handles medium-production stamping at selectable cycle rates.
The 800 × 600 mm table, 520 mm shut height and 12 mm adjustment range accommodate standard stamping die sets. ZTS Smeral (Czech Republic) built mechanical presses for European forging and stamping production.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
| Nominal force | 400 ton (≈4 000 kN) |
| Stroke | 80 mm |
| Table size | 800 × 600 mm |
| Strokes per minute | 35 / 45 spm |
| Shut height | 520 mm |
| Adjustment range (table–slide) | 12 mm |
| Hole diameter in slide | 60 mm |
| Bolster thickness | 120 mm |
| Motor power | 22 kW |
| Press height above floor | 2 850 mm |
| Overall dimensions (L × W) | 1 600 × 1 400 mm |
| Weight | 12 400 kg |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Frequently Asked Questions
This 400-ton press is sold. Eccentric and stamping presses of this class circulate on the market; send your requirement and we will propose options.
The machine ran an 80 mm stroke at selectable rates of 35 or 45 spm and sold as a used press. We assess and disclose condition on every machine before sale.
We provide the table drawings, manuals and electrical diagrams that exist for each machine we sell and confirm availability before contract.
On machines we offer, yes. Where the site has power we run the drive for you and document the test. For remote buyers we film the demonstration.
Our package covers disconnection, loading, securing, transport and customs documentation. We price it against the actual location and destination.
