Quick Facts
| Equipment ID | 121 |
| Category | Trimming Press |
| Model | KG 9534.01 |
| Nominal force | 250 ton |
| Year of Manufacture | 1991 |
| Condition | Information upon request |
| Availability | Sold |
Machine Description

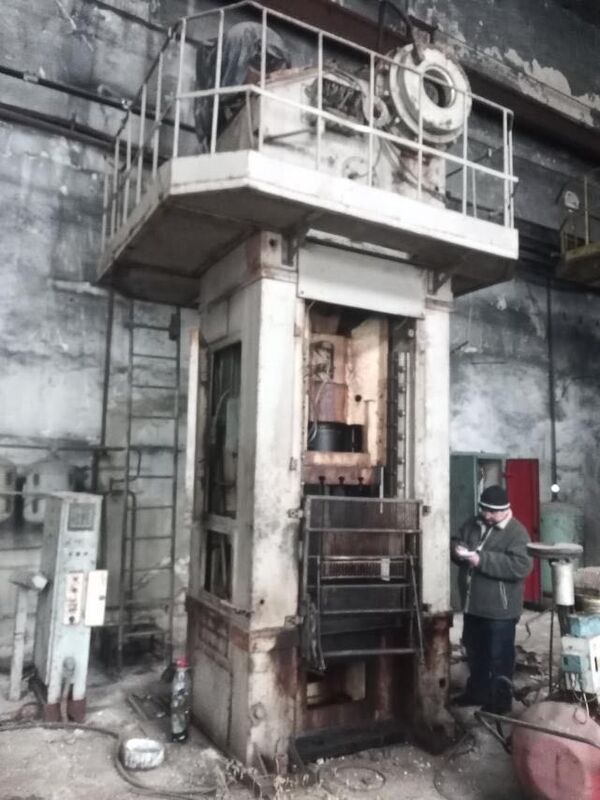

The KG 9534.01 is a 250-ton mechanical trimming press (1991) for post-forging flash removal and trimming operations on small-to-medium forged components. Operating at 45 spm with a 320 mm slide stroke, it provides high-throughput trimming capacity for forging line integration.
The 800 × 800 mm table, 140 mm slider adjustment and 390 mm shut height accommodate standard trimming die sets for a range of forged part sizes.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
| Model | KG 9534.01 |
| Type | Trimming press |
| Year of manufacture | 1991 |
| Nominal force | 250 ton |
| Slider stroke | 320 mm |
| Strokes per minute | 45 |
| Single strokes frequency (max) | 24 /min |
| Shut height (bed to slider, upper) | 390 mm |
| Slider adjustment | 140 mm |
| Table dimensions | 800 × 800 mm |
| Slider dimensions | 670 × 630 mm |
| Bolster plate thickness | 140 mm |
| Overall dimensions (L × W × H) | 2500 × 2400 × 4850 mm |
| Weight | 18 600 kg |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Frequently Asked Questions
This 250-ton press is sold. We source high-speed trimming presses on request, so describe your task and we will look for a match.

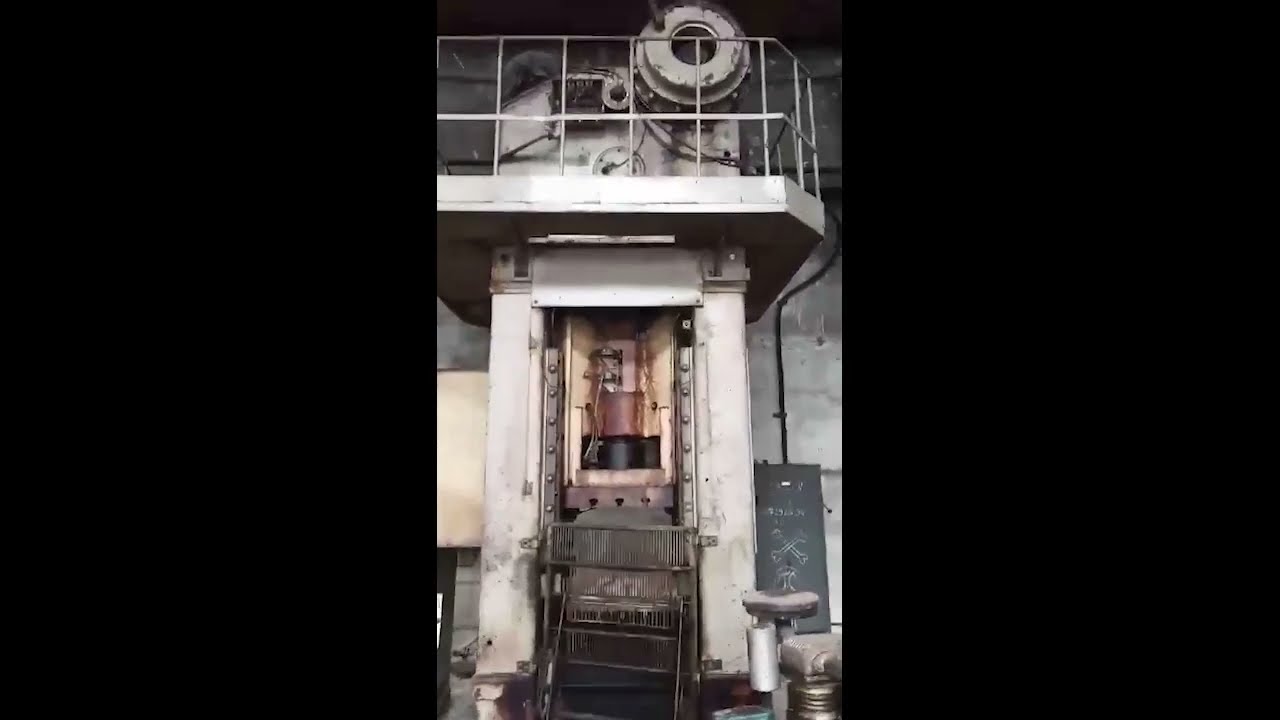

Yes, the page includes a video of this unit. We prepare similar footage for machines we offer, which helps you shortlist before an inspection.
It ran at up to 45 strokes per minute with a 320 mm slider stroke and 140 mm adjustment. Maximum single-stroke frequency was 24 per minute.
We deliver the manuals, electrical diagrams and service records that exist for each machine and list them in the offer, so the scope is fixed in writing.
Yes. We arrange inspections at the machine's location, including powered runs where possible, and we send detailed photo and video reports if you cannot travel.
