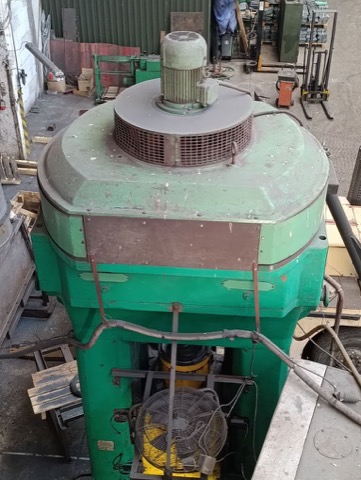

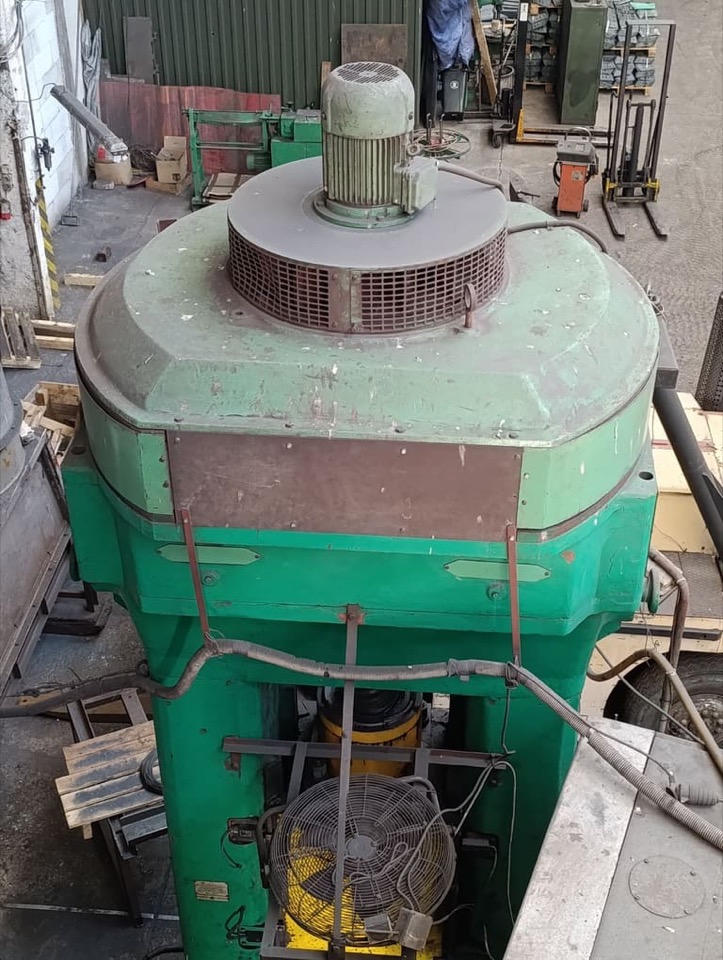

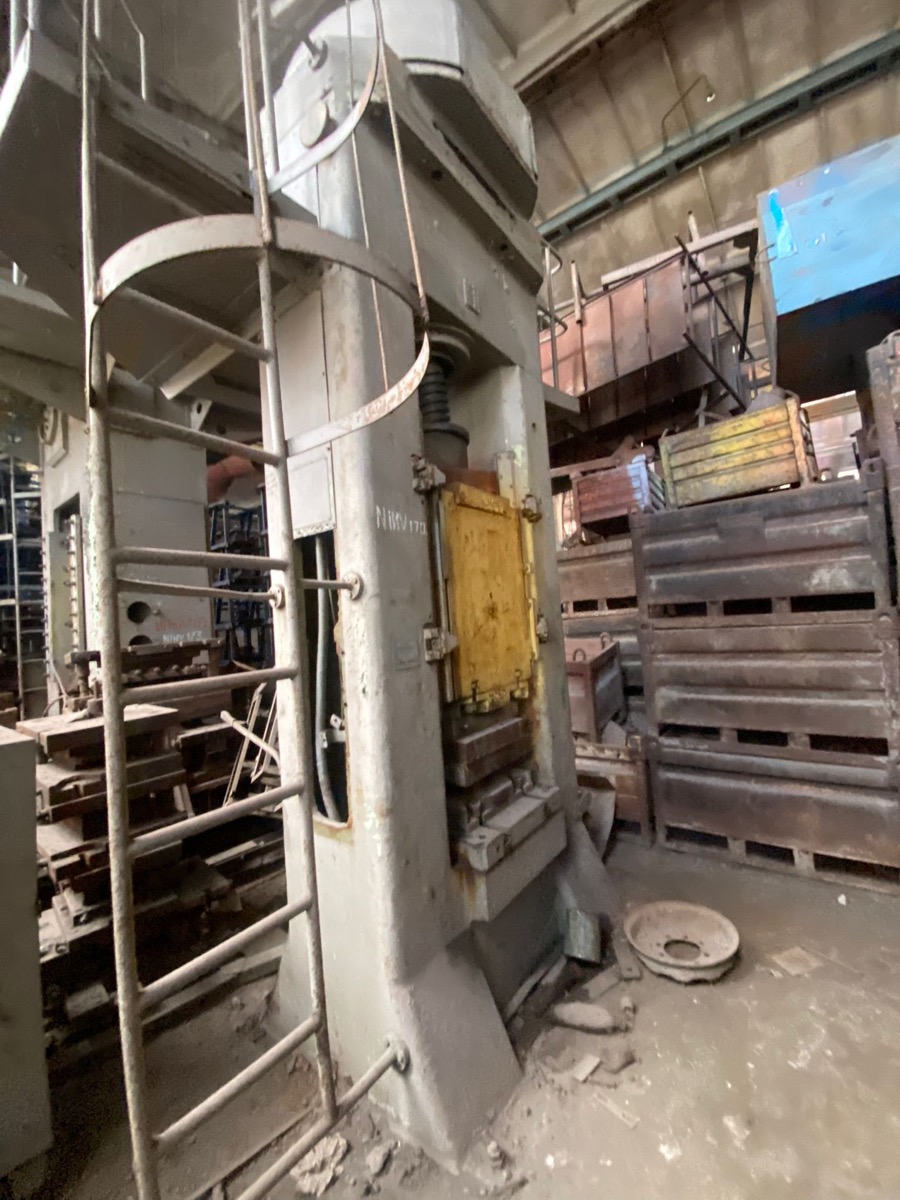

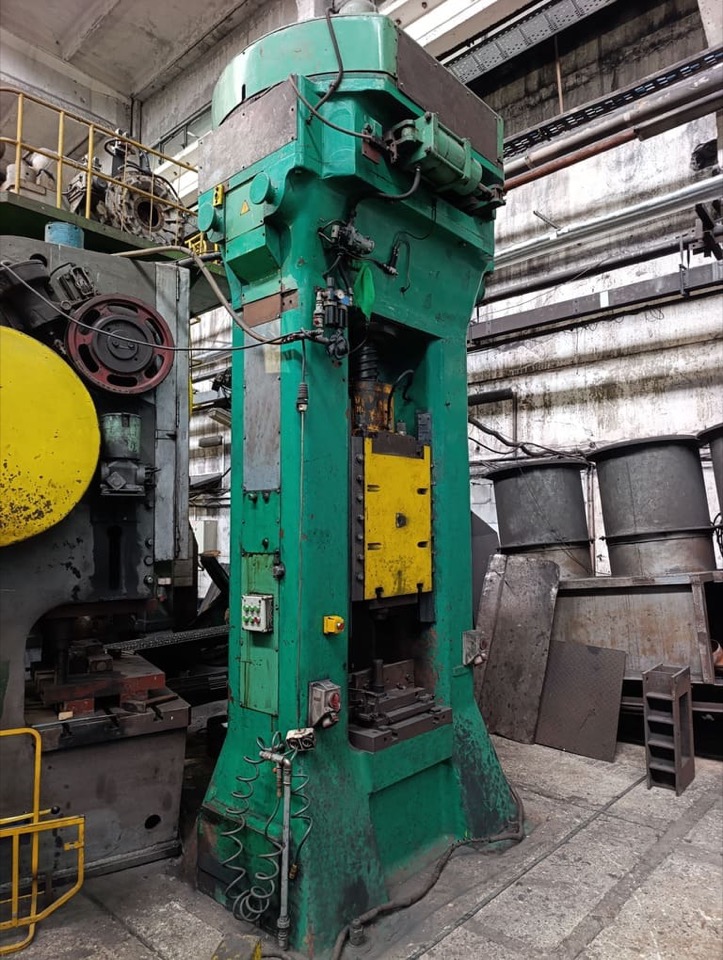

The Stankoimport F1734A is a 250-ton screw press (serial 605) for cold and warm stamping operations including blanking, punching, bending, shallow drawing, coining and straightening.

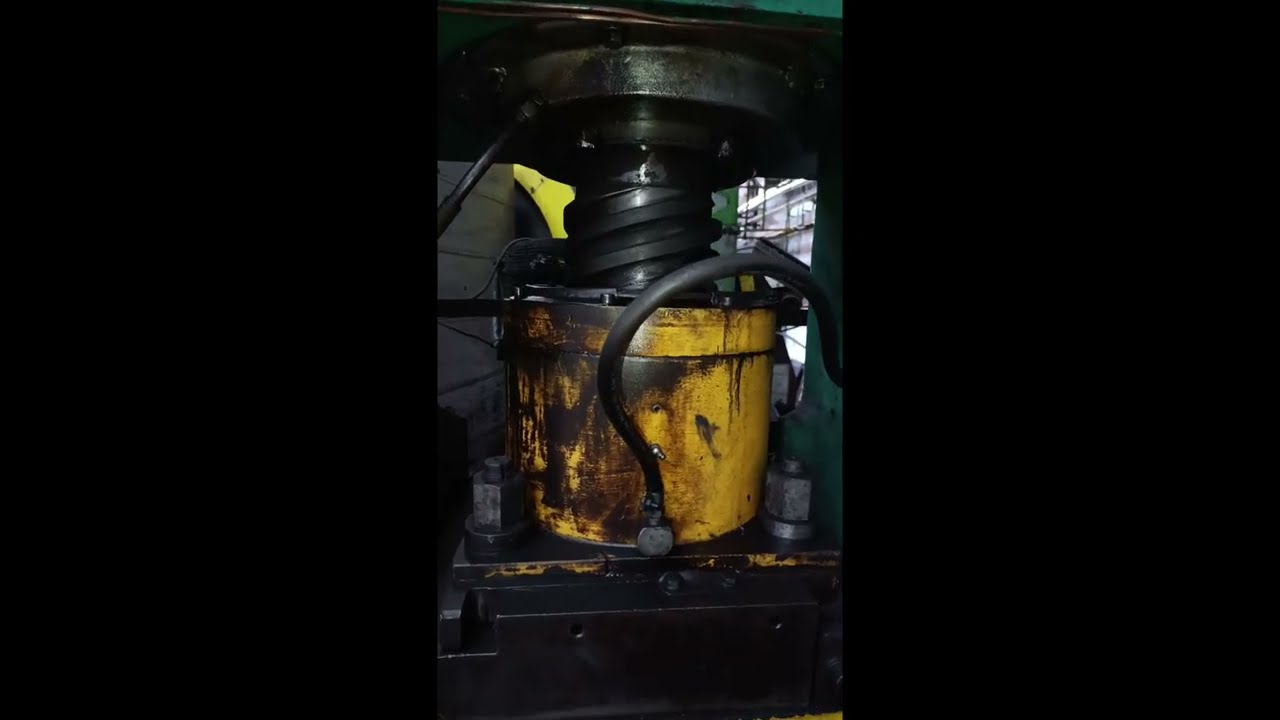

The A variant has a 400 mm maximum slide stroke and a built-in lower ejector (16 ton effort, 106 mm stroke) for reliable part extraction. The 670 × 750 mm table and 30 spm operating speed suit medium-volume stamping and forging lines. A video of the press in operation is available on this page; 10 photographs are also available.
Machine is available. Contact TRIGA for inspection access, technical data and export logistics — contact us.
Technical Specifications

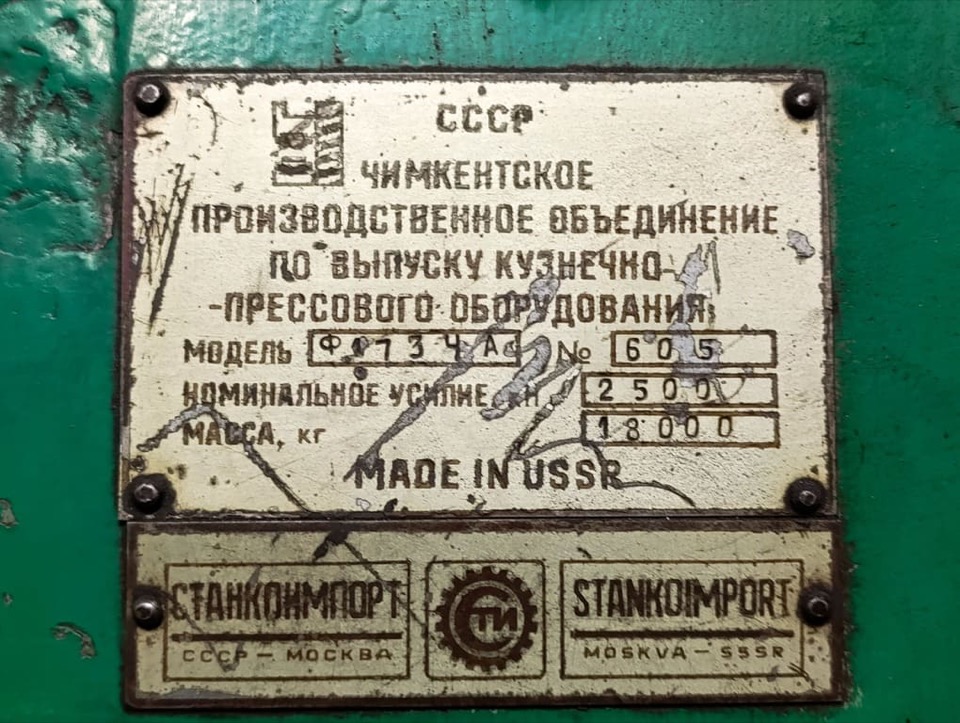

Manufacturer
Stankoimport
Model
F1734A
Serial number
605
Machine type
Screw press
Nominal force
250 tons
Maximum slide stroke
400 mm
Maximum strokes per minute
30

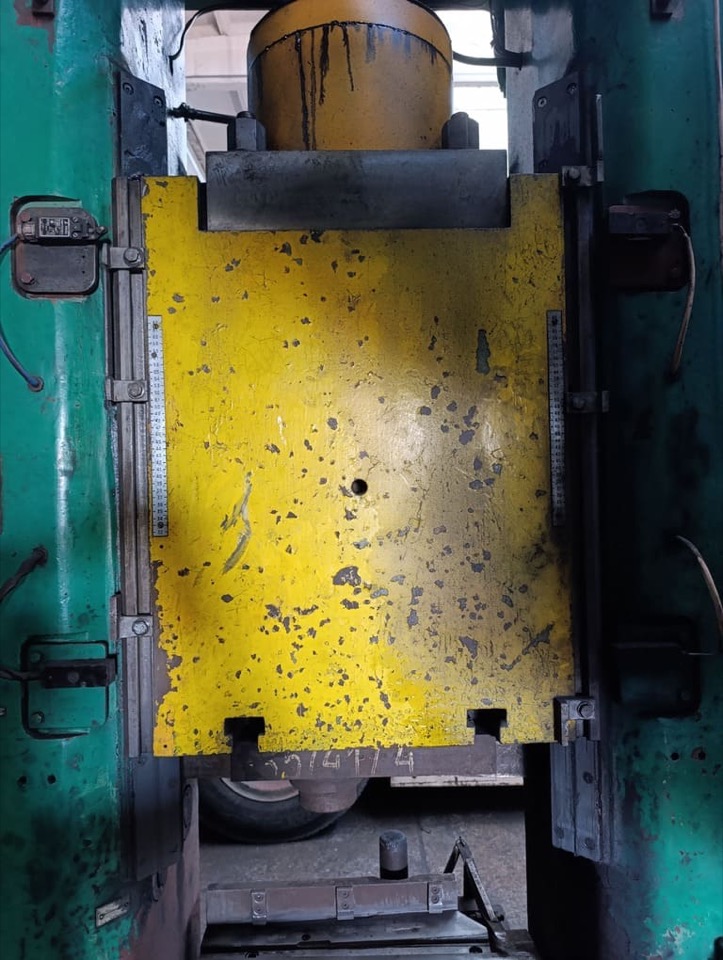

Ram size (front-back)
560 mm
Table size (L-R)
670 mm
Table size (F-B)
750 mm
Min distance table-slider
420 mm
Lower ejector effort
16 tons
Lower ejector movement
106 mm
Motor power
30 kW
Press dimensions
3610 × 1990 × 4930 mm
Weight
18 000 kg
Dismantling
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Please send us your contact details and we will provide available information about this equipment.
Common questions
Frequently Asked Questions
The F1734A is a modified variant with a longer maximum slide stroke (400 mm vs 350 mm), a heavier frame (18 000 kg vs 15 500 kg) and a built-in lower ejector system. These differences reflect a design optimised for sheet metal stamping including coining and shallow drawing.

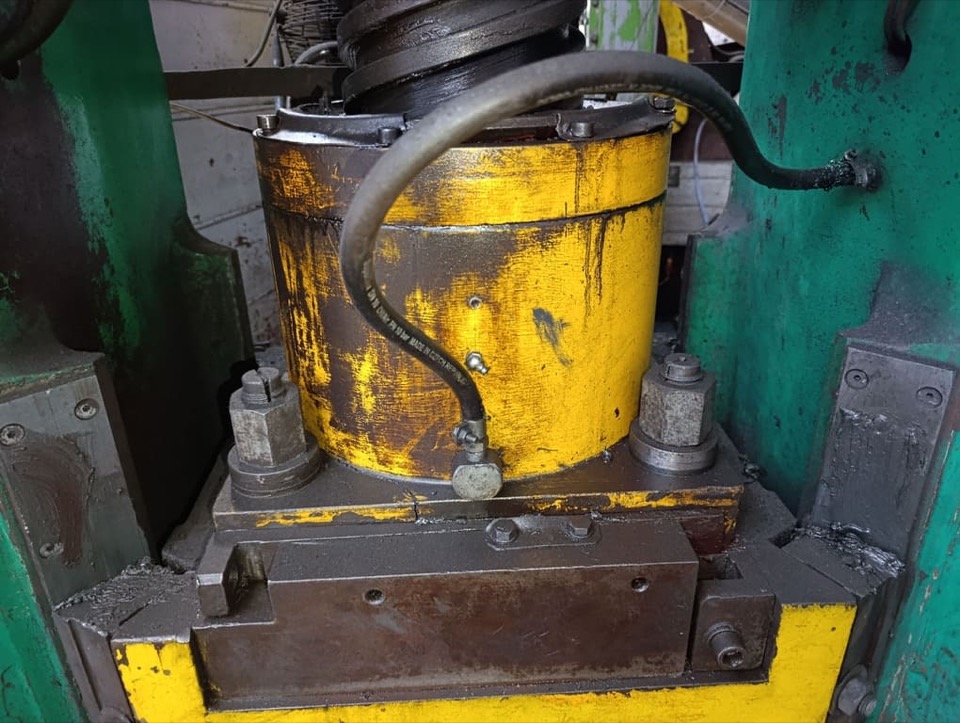

Yes. The machine includes a lower ejector with 16 tons of effort and 106 mm stroke, which is useful for extracting formed parts from the die.
Yes, the F1734A is listed as available. A video of the press in operation is on this page. TRIGA can also arrange an on-site inspection and provide a full photo set.
The 250-ton capacity and 400 mm stroke make the F1734A suitable for blanking, punching, bending, shallow drawing, coining and straightening of sheet metal and medium-size forgings.
Yes. TRIGA can arrange dismantling, export packing, loading, EUR.1 documentation and international transport to the buyer's destination. Contact us to discuss the logistics scope.
