Quick Facts
| Equipment ID | 112 |
| Category | Vertical Turning Lathe |
| Brand | Stanko-Sedin |
| Model | 1L532 |
| Condition | Information upon request |
| Availability | Sold |
Machine Description

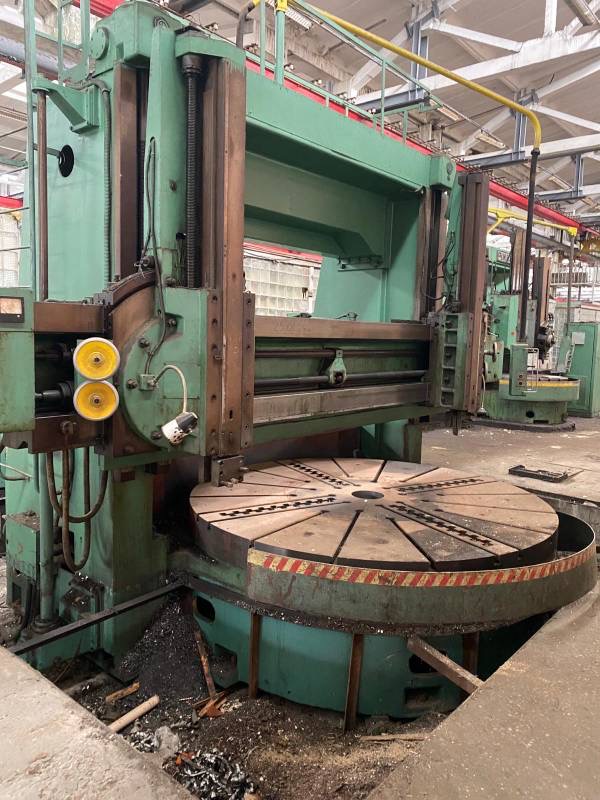

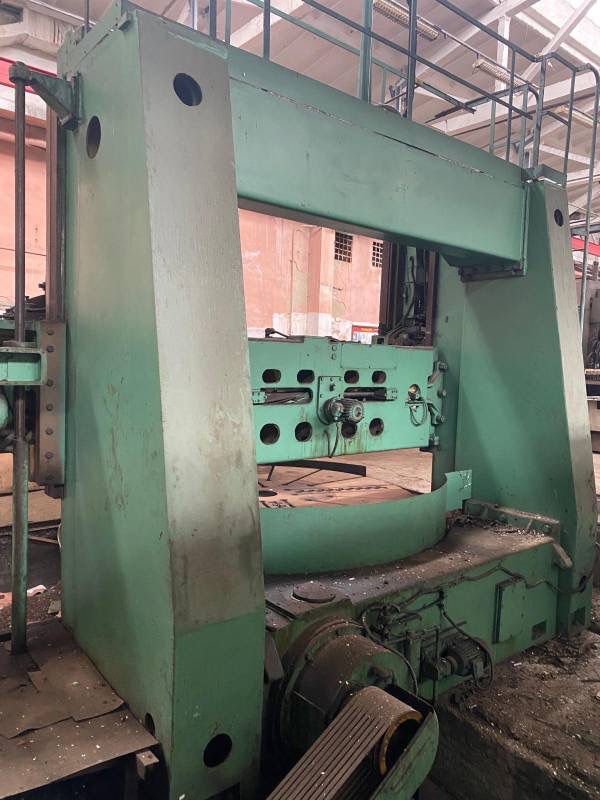

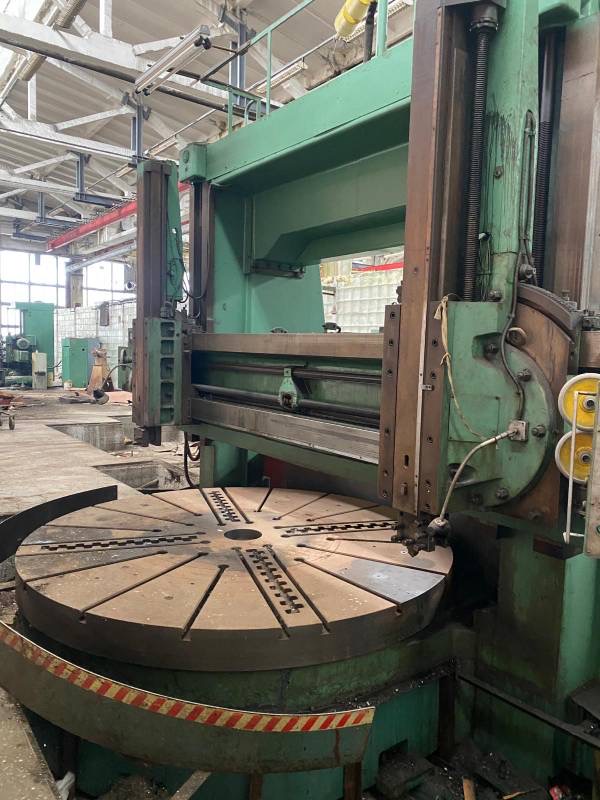

The 1L532 is a double-column vertical turning lathe by STANKO-SEDIN with a maximum turning diameter of 3200 mm and 2800 mm faceplate, designed for heavy turning, facing and boring of large-diameter workpieces up to 16 tons. The machine provides 18 spindle speeds from 1.25 to 63 rpm, covering a wide range of cutting conditions for large rings, flanges, turbine components and other heavy rotation-symmetric parts.
The 1200 mm vertical slide travel and 1720 mm horizontal support travel give the operator extensive reach across the workpiece, while the ±30° tilt capability (without turret head) enables conical and angular turning operations. Feed range of 0.04–16 mm/rev and a 55 kW main drive motor provide cutting flexibility across different materials and depths of cut.
At 43 tons and 5490 × 6540 × 5100 mm overall dimensions, the 1L532 is a large-capacity machine suited to heavy engineering, power generation and shipbuilding component production.
This machine has been sold. The listing is maintained as an archive reference. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
| Max. turning diameter (swing) | 3200 mm |
| Faceplate / table diameter | 2800 mm |
| Faceplate rotation speed | 1.25–63 rpm |
| Number of speeds | 18 |
| Max. workpiece height | 1600 mm |
| Max. workpiece weight | 16 t |
| Distance between faceplate and vertical supports | 0–1780 mm |
| Distance to bottom of cross-rail | 400–1640 mm |
| Max. vertical travel of the slide | 1200 mm |
| Max. horizontal travel of the vertical supports | 1720 mm |
| Tilt angle of vertical supports (without turret head) | ±30° |
| Feed range | 0.04–16 mm/rev |
| Main drive motor power | 55 kW |
| Overall dimensions (L×W×H) | 5490 × 6540 × 5100 mm |
| Machine weight | 43 000 kg |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Frequently Asked Questions
This 1L532 is sold. Large vertical turning lathes pass through our stock, so send your requirement and we will propose what the market offers.
It accepted workpieces up to 3200 mm turning diameter, 1600 mm high and 16 tons. The faceplate diameter was 2800 mm.
We list chucks, toolholders and accessories item by item in each offer, so you know before contract exactly what ships with the machine.
We hand over the manuals, electrical drawings, speed charts and foundation data available for the specific machine and confirm the list during negotiations.
Our logistics scope covers partial dismantling, protected packing, crane loading and heavy transport. We prepare export documents and coordinate customs as part of the package.
