Quick Facts
| Equipment ID | 104 |
| Category | CNC Bending Machine |
| Brand | EVG (Austria) |
| Model | PBE 2-16 |
| Year of Manufacture | 2017 |
| Condition | Information upon request |
| Availability | Available |
Machine Description
The EVG POLYBEND PBE 2-16 is a 2017-manufacture Austrian automatic CNC bending machine for reinforcing steel wire, designed for high-volume precision production of shaped reinforcement components. Processing wire diameters from 2.0 to 16.0 mm at up to 100–140 m/min feed speed with ±0.5 mm positioning accuracy, the machine is suited to demanding precast and structural reinforcement production.
The POLYBEND system uses CNC-controlled servo drives to achieve up to 1200–1500 bends per hour with repeatable part geometry. The machine processes B500 reinforcing steel, cold-drawn wire, and both smooth and ribbed profiles within the stated range, making it versatile across different reinforcement element types including mesh, 3D reinforcement cages and precast concrete reinforcement elements.
With 400 V / 50 Hz power supply, 68 kVA installed power and 6–8 bar pneumatic requirement, the machine is ready for integration into standard European production facilities. Serial number 27770, manufactured in Austria by EVG Entwicklungs- und Verwertungsgesellschaft m.b.H.
The machine is located in Europe and available for inspection. TRIGA can arrange full technical assessment, dismantling, export packing and international delivery logistics — contact us for details.
Technical Specifications
| Manufacturer | EVG Entwicklungs- und Verwertungsgesellschaft m.b.H. (Austria) |
| Model | PBE 2-16 |

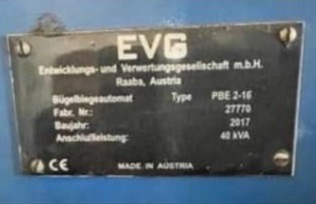

| Serial Number | 27770 |
| Year | 2017 |
| Machine type | Automatic CNC bending machine for reinforcing steel wire |
| Wire diameter range | 2.0 – 16.0 mm |
| Material | Reinforcing steel (B500), cold-drawn wire, smooth & ribbed |
| Maximum feeding speed | Up to 100–140 m/min |
| Bending capacity | Up to 1200–1500 bends/hour |
| Positioning accuracy | ±0.5 mm |
| Control system | CNC with servo drives |
| Power supply | 400 V / 50 Hz |
| Installed power | Approx. 68 kVA |
| Pneumatic pressure | 6–8 bar |
| Made in | Austria |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Request Information About This Machine
Please send us your contact details and we will provide available information about this equipment.
Frequently Asked Questions
Serial 27770 is listed as available for inspection in Europe. A technical check can verify wire feeding, bending heads, servo drives, guards and CNC operation.
A production trial can be requested using an agreed wire grade and diameter, subject to site availability. The trial should record feed accuracy, bend repeatability and output.
The control version, licenses, parameter backups and stored programs will be inventoried before sale. Transferability of software is confirmed with the machine documentation.
Only tooling and accessories listed in the signed inventory are included. Required bending tools should be checked against B500, smooth or ribbed wire applications.
The listed requirements are 400 V at 50 Hz, approximately 68 kVA installed power and 6–8 bar compressed air. The buyer should confirm local electrical protection and air capacity.
A schedule is issued after inspection, data backup and removal planning. Packing, loading, transport, export documents and customs can be included.
