2000 tons hydraulic heavy press Dnepropress D2243

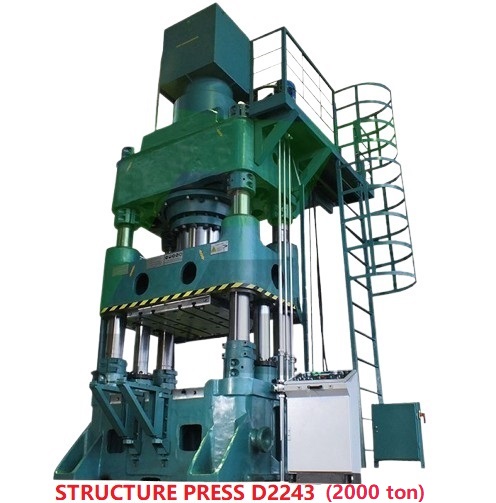

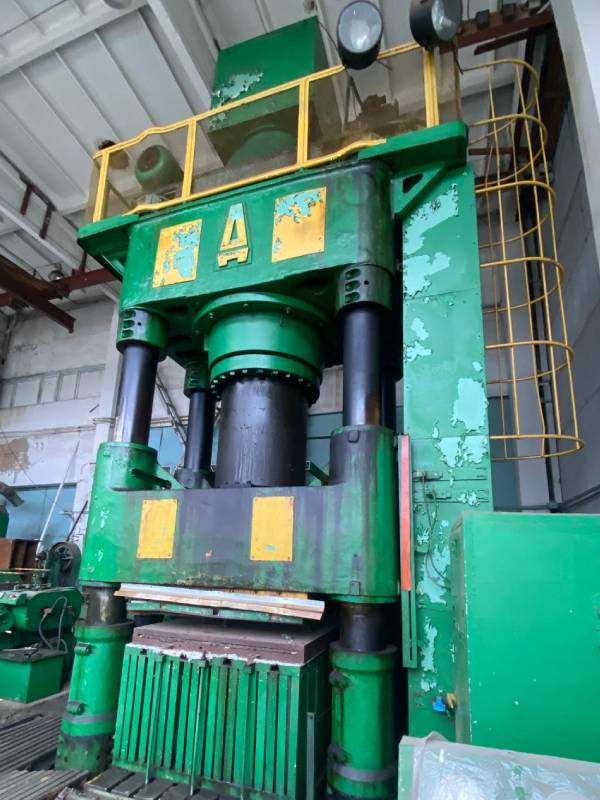

D2243 hydraulic press main view
D2243 press side view

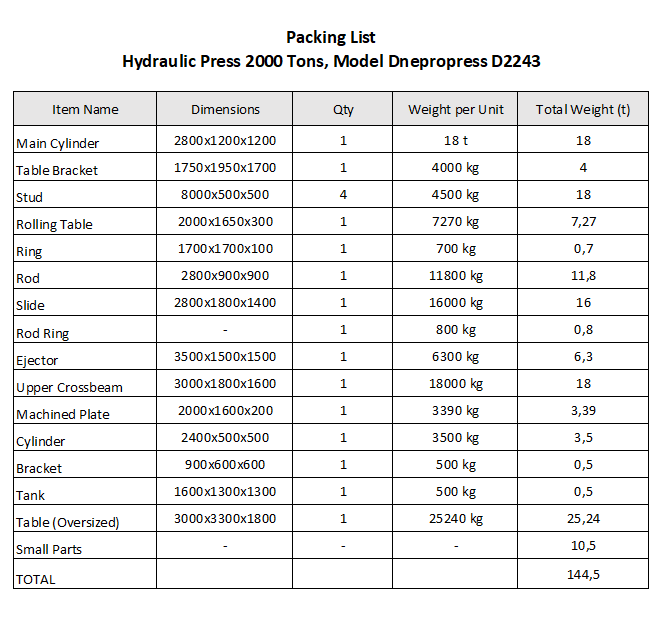

D2243 press details
D2243 press view 4

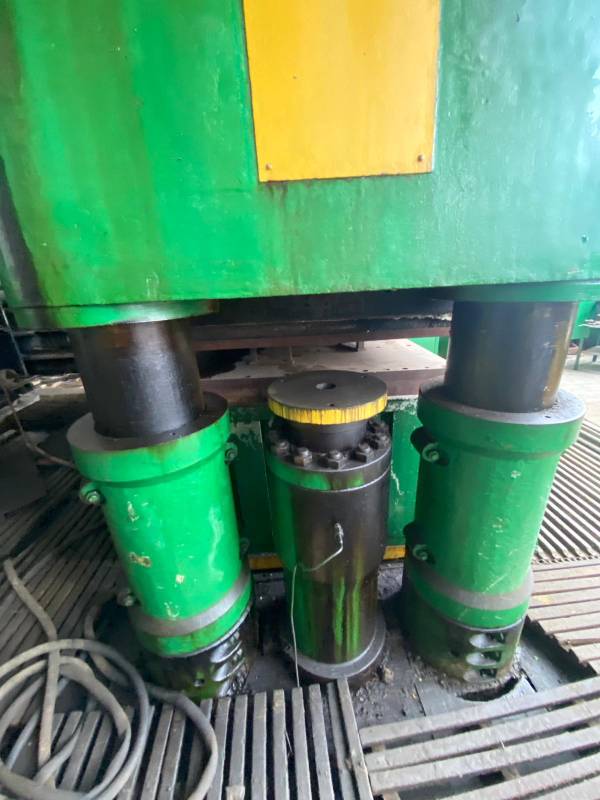

D2243 press view 5

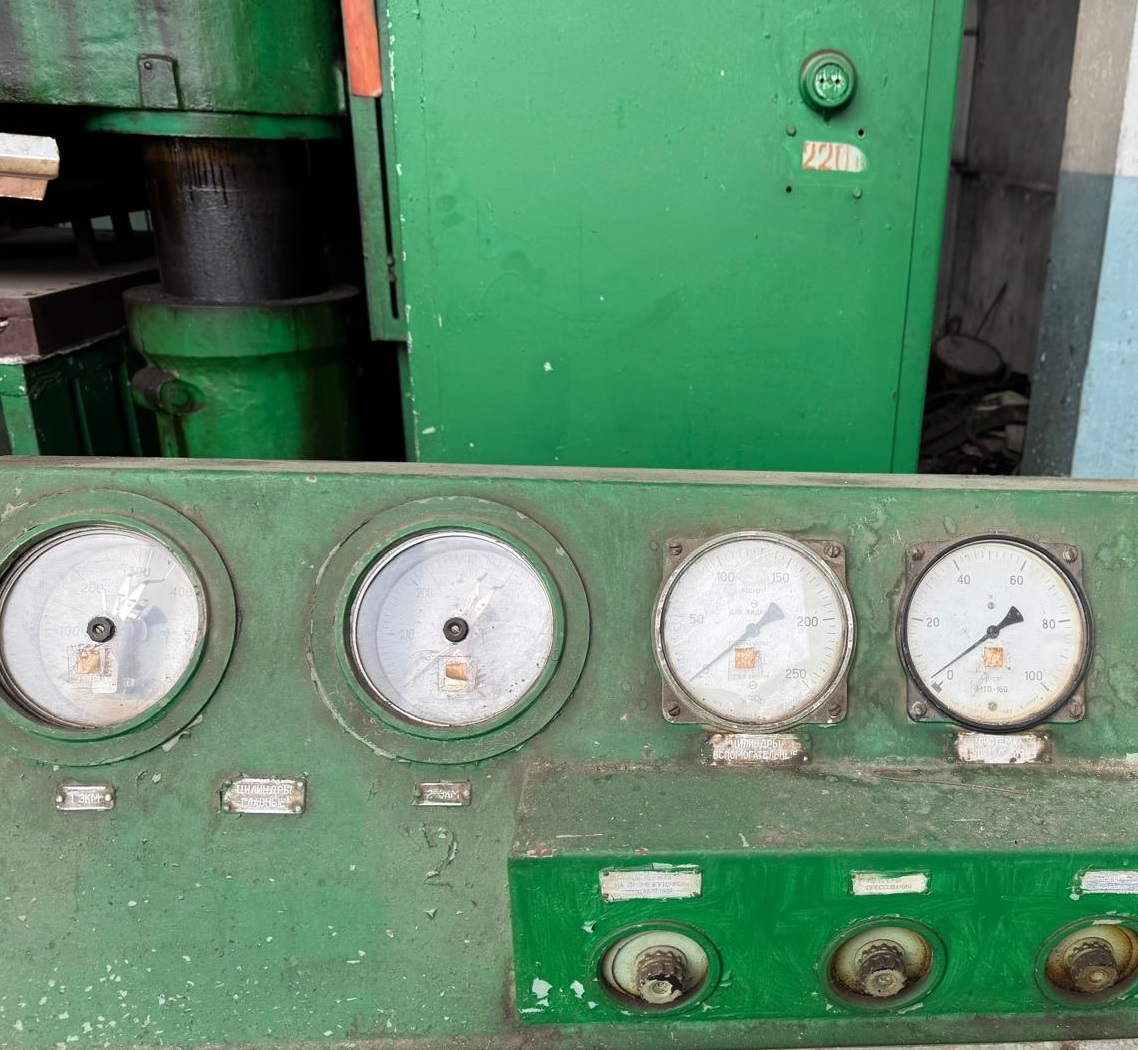

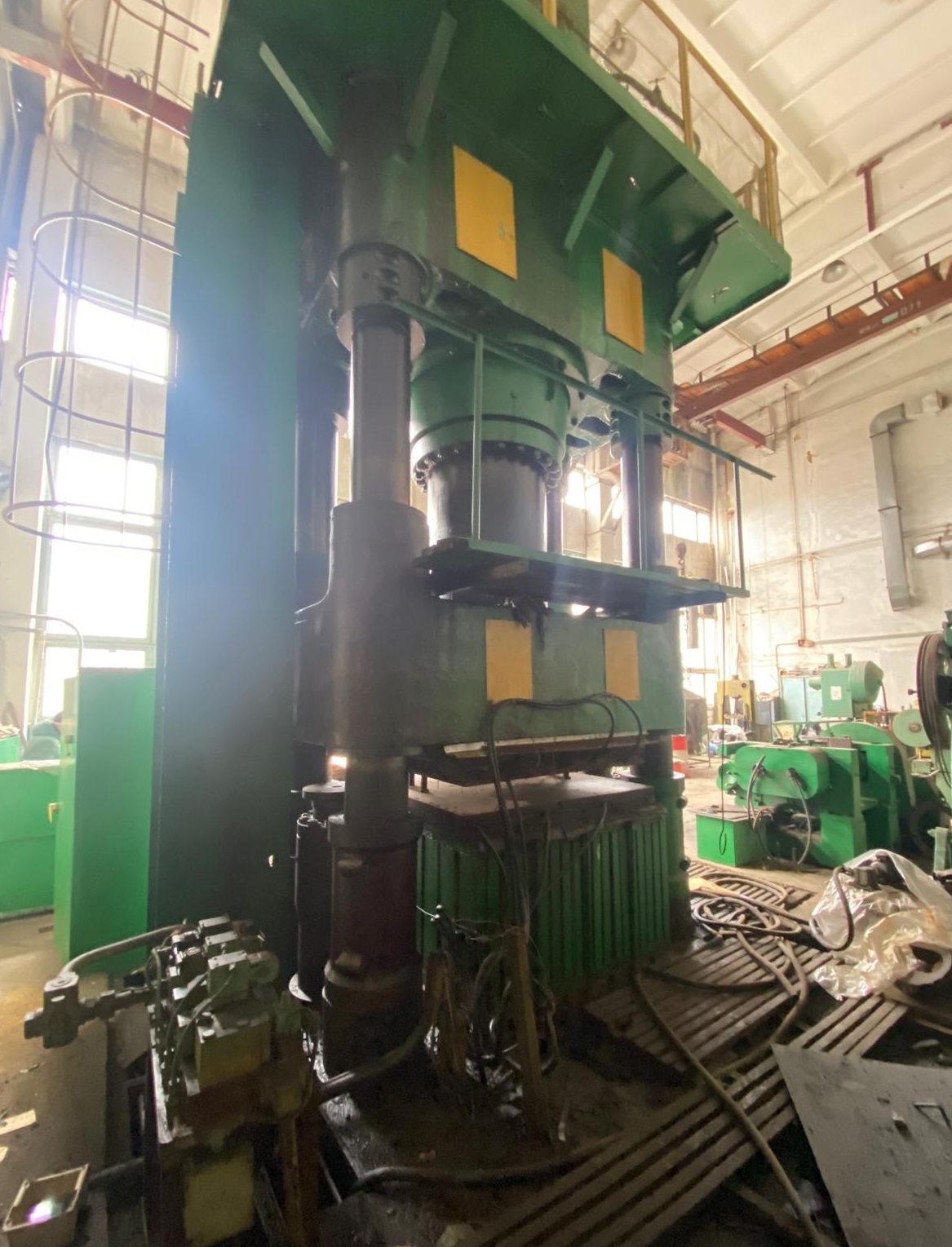

D2243 press view 6

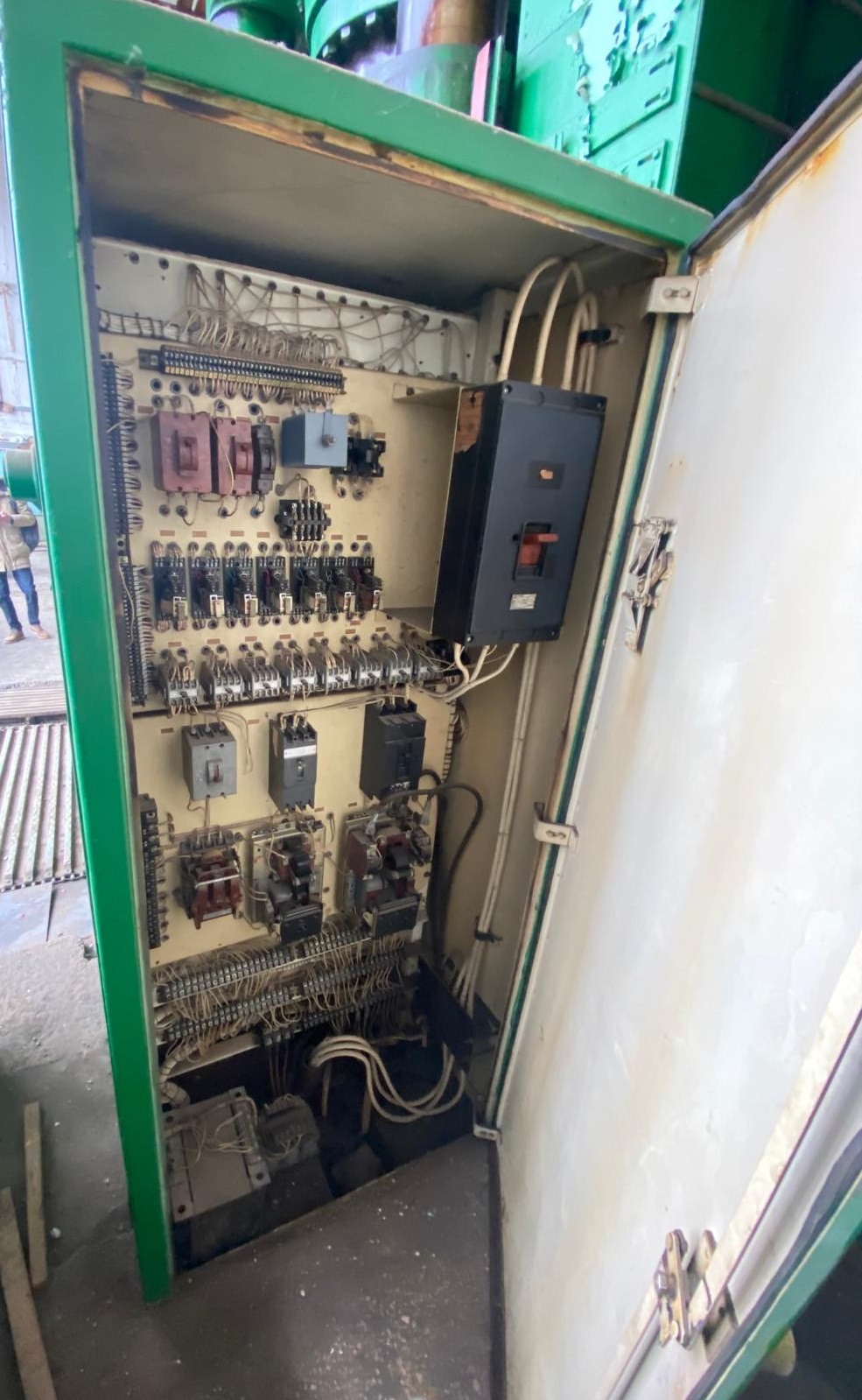

D2243 press view 7
D2243 press view 9
Video overview D2243

2000 tons hydraulic heavy press Dnepropress D2243

Machine ID: TRG-2000-HY-01
Nominal force2000 t
TypeHydraulic heavy press
ManufacturerDnepropress (Ukraine)
LocationBalti, Republic of Moldova
Price on request
Ex-works Balti, Moldova. Dismantling, loading and logistics on request.
Request a quote Clarify price

Used 2000 tons hydraulic heavy press Dnepropress D2243 with 1400 mm slide stroke and 2400 mm shut height.

  • Located in Balti city, Republic of Moldova.
  • Press is complete and can be inspected under power by prior agreement.
  • Full dismantling, packaging, export documentation and transport can be organized.

For detailed photos, video and full technical specification, please contact us and mention the machine ID TRG-2000-HY-01.

Technical description

The D2243 hydraulic press with a force of 2000 tonnes is used for the manufacture and processing of products made of plastics, rubber and other similar materials. In addition, the press can be used to process thin-gauge rolled metal. This equipment is used in industrial enterprises for both single-piece and medium- and large-scale production.

The frame of the D2243 press has a four-column design, is collapsible, but has sufficient rigidity, which allows for significant accuracy of geometric parameters even under maximum loads. The advantages of this type of frame include the ability to install the press in confined spaces using less powerful lifting equipment than is required for the installation of presses with welded frames, as well as the ability to access the working area from four sides of the table.

Technical data
Manufacturer Dnepropress (Ukraine)
Model D2243
Nominal force 2000 tons
Slide stroke 1400 mm
Shut height (distance between plates) 2400 mm
Table size (width × length) 1650 × 2000 mm
Overall dimensions (L × W × H) 7000 × 5750 × 7900 mm
Main motor power 62 kW
Press weight 144.5 tons
Year of manufacture 1986
Location Balti city, MD-3100, Republic of Moldova
