1600 ton Hot forging press TMP Voronezh K8542

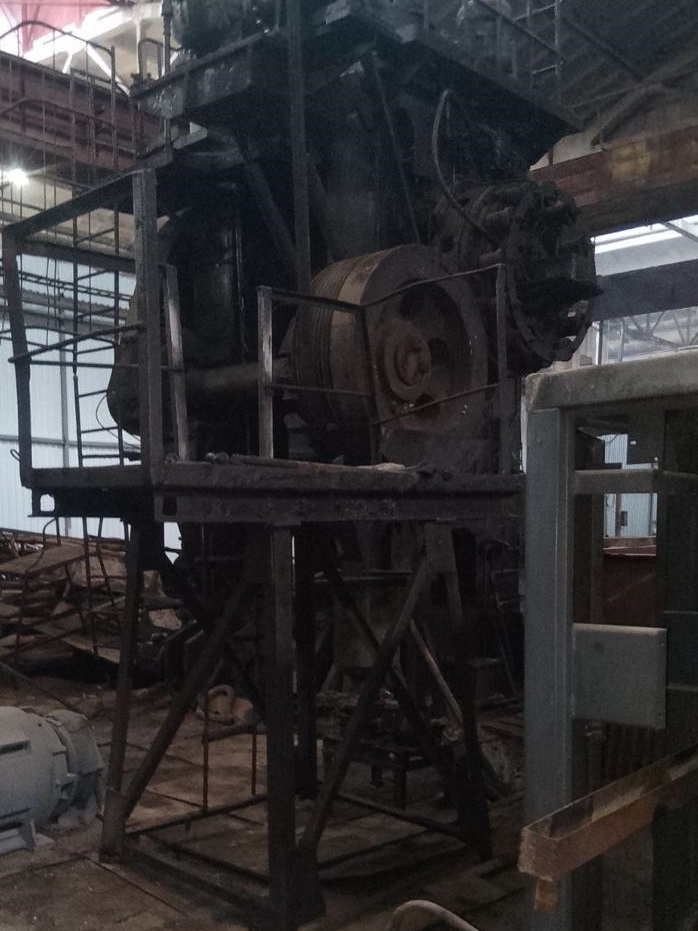

K8542 press side view

1600 ton Hot forging press TMP Voronezh K8542

Machine ID: TRG-1600-HF-02
Force 1600 t
Type Hot forging press
Manufacturer TMP Voronezh
Location EU plant
Price on request. We will calculate with dismantling and logistics.
Request a quote Clarify price

Used 1600 ton hot forging press TMP Voronezh K8542 with 300 mm slide stroke, 940 × 1200 mm table and 75 strokes per minute, suitable for automotive, railway and general hot forging lines. These parameters correspond to documented K8542 technical specifications from multiple listings and catalogs.

  • Full technical inspection and dismantling on request.
  • Packaging and export documentation for EU and overseas customers.
  • Modernization and automation options can be discussed.

For detailed photos and full technical specification, please contact us and mention the machine ID. Market data confirms several K8542 presses in European and Asian stock.

Technical description

TMP Voronezh K8542 is a mechanical hot forging press designed for upset forging, preforming and blocking operations where high energy and 1600 ton force are required. The 300 mm slide stroke at up to 75 strokes per minute supports high-output forging lines while maintaining reliable accuracy.

The press can be delivered with dismantling, loading, transport securing and commissioning support at your plant, including export documentation and logistics coordination to EU and overseas destinations. Several suppliers highlight K8542 as a proven solution for heavy hot forging shops.

Technical data
Force 1600 tons
Slide stroke 300 mm
Distance adjustment between table and slider 10 mm
Slide strokes per minute 75 spm
Length of a rod 920 mm
Closed height (min distance table–slide) 660 mm
Table dimensions 940 × 1200 mm
Table height above floor level 450 mm
Slide dimensions 860 × 910 mm
Lateral window (h/w) 560x600 mm
Main motor 110 kW
Dimensions 5060x3940x5125 mm
Press weight 120 tons
Technical data aligns with multiple K8542 specifications, including force, stroke, adjustment range, dimensions and motor power. Some listings cite minor variations in stroke rate (75–85 spm) and motor rating (90–110 kW) depending on execution and retrofit level.
