Quick Facts
| Equipment ID | 127 |
| Category | Hydraulic Press |
| Brand | ILR |
| Model | HPD-2-630 |
| Nominal force | 630 ton |
| Condition | Information upon request |
| Availability | Sold |
Machine Description

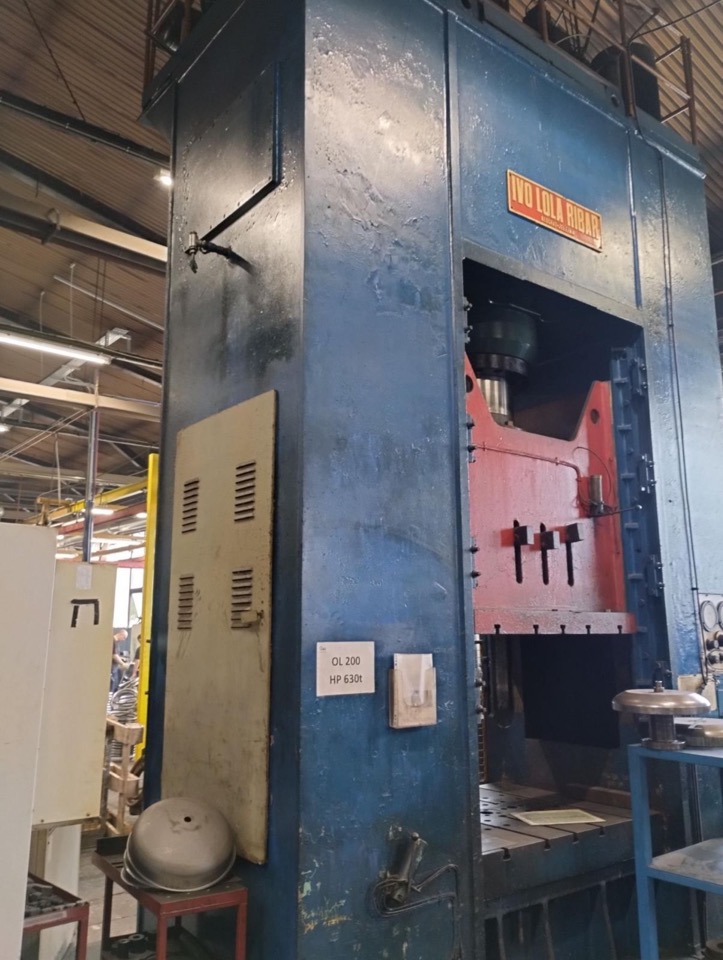

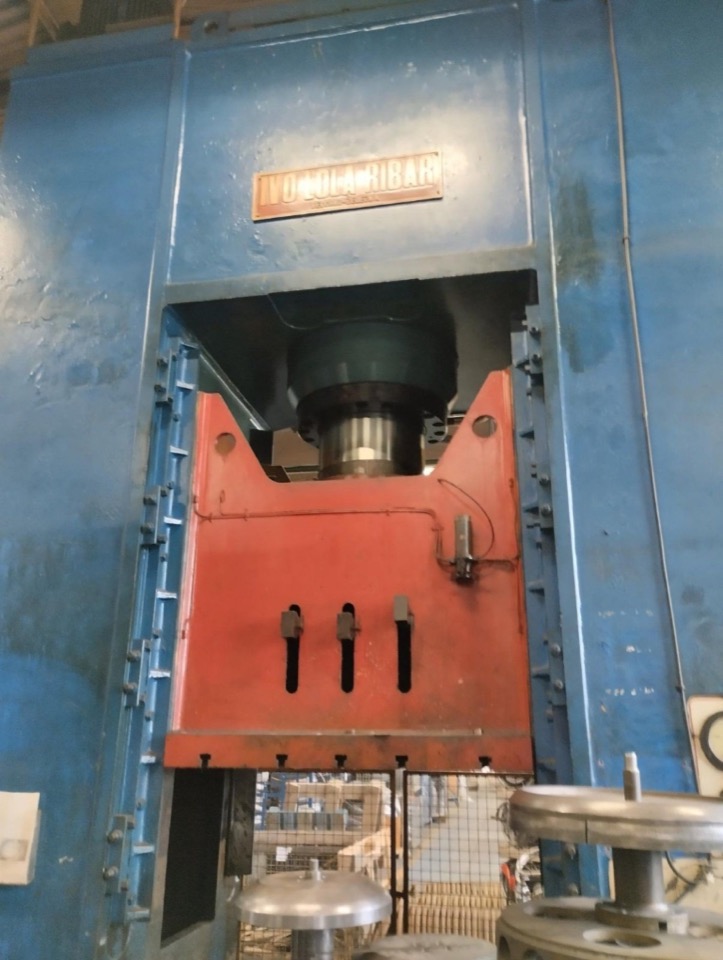

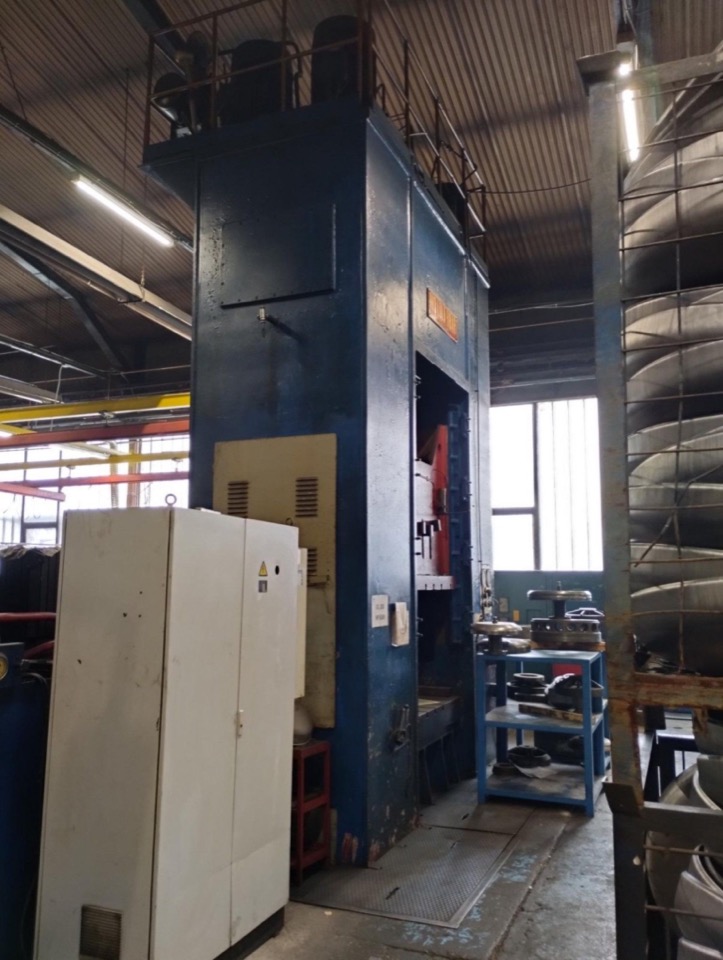

The ILR HPD-2-630 is a 630-ton hydraulic press for heavy forming, pressing and straightening operations. With an 800 mm ram stroke, 1300 mm maximum opening and 1600 × 1250 mm worktable, the HPD-2-630 accommodates large tooling for demanding forming applications.
The 260 bar maximum oil pressure, 500 mm minimum tool height and 40-ton lower table ejector support a range of forming and press operations.
This machine is not currently available. Contact TRIGA for similar available equipment — contact us.
Technical Specifications
| Manufacturer | ILR |
| Model | HPD-2-630 |
| Type | Hydraulic press |
| Nominal force | 630 ton |
| Worktable | 1600 × 1250 mm |
| Maximum ram opening | 1300 mm |
| Ram stroke | 800 mm |
| Minimum tool height | 500 mm |
| Maximum oil pressure | 260 bar |
| Ejector in lower table | 40 tons |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Frequently Asked Questions
The HPD-2-630 has been sold. Contact TRIGA for a comparable hydraulic press with similar tonnage and stroke.
A powered pressure test may be arranged if the press is connected and the site approves the procedure. Static inspection and remote video are alternatives when a load test is unavailable.
The ejector can assist part release from tooling mounted on the 1600 × 1250 mm table. Stroke, interface and timing should be checked against the buyer's die design.
The machine file can be reviewed for hydraulic schematics, electrical drawings, manuals and service records. The precise handover package is confirmed in writing.
A complete logistics quote can cover disconnection, oil management, lifting, packing, transport and customs. Delivery timing is fixed after the pickup survey and destination are known.
