Quick Facts

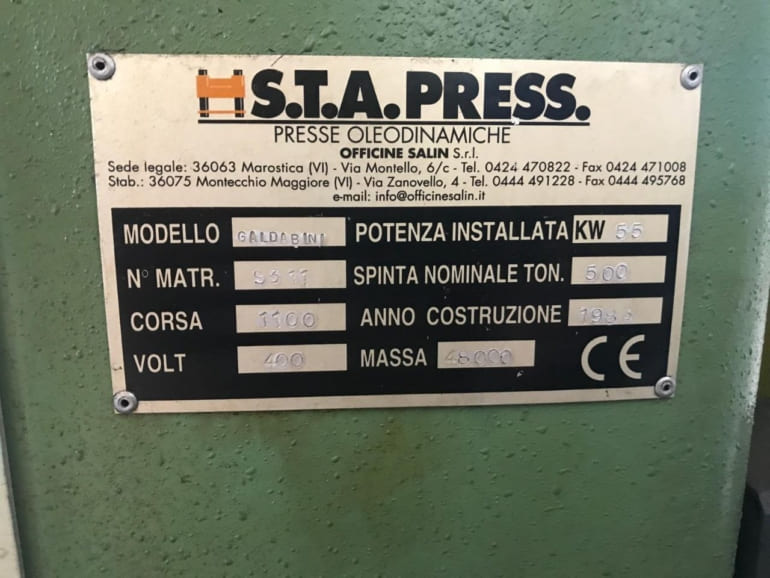

| Equipment ID | 125 |
| Category | Hydraulic Press |
| Brand | S.T.A GALDABINI |
| Nominal force | 500 t |
| Year of Manufacture | 1983 |
| Condition | Information upon request |
| Availability | Available |
Machine Description

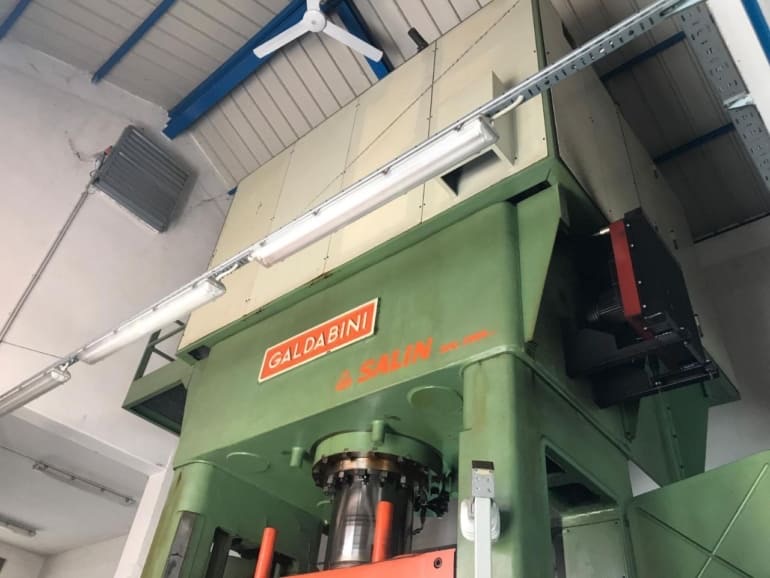

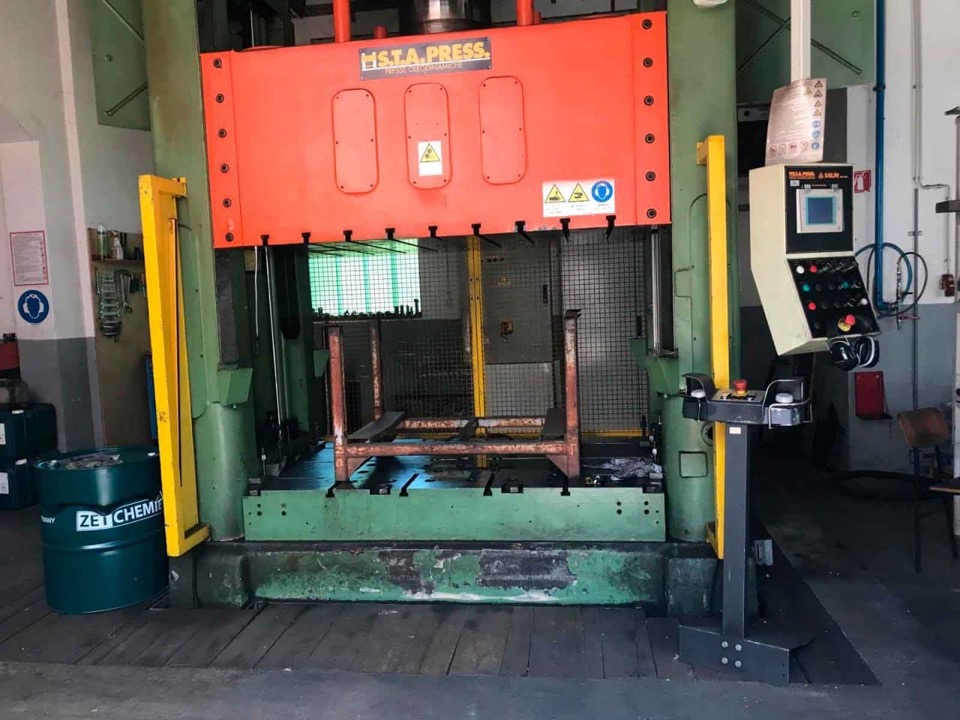

The S.T.A Press GALDABINI is a 500-ton Italian hydraulic press (1983) for pressing, straightening, deep drawing and die try-out. With a 1100 mm adjustable stroke, 1700 mm internal vertical space and 238 bar maximum working pressure, it handles large tooling and controlled forming across a wide force range.
The 2100 mm horizontal width and 2000 × 1400 mm bed support large dies and fixtures. Ram speed ranges from 10.4 mm/s at full 500 t to 22.4 mm/s at 220 t, allowing cycle profiles to match the forming requirement.
Contact TRIGA to request full specifications and arrange an inspection — contact us.
Technical Specifications
| YOM | 1983 |
| Total maximum force | 500 tons |
| Max work pressure | 238 bar |
| Minimum work pressure | 30 bar |
| Maximum adjustable path | 1100 mm |
| Internal vertical maximum space | 1700 mm |
| Horizontal width | 2100 mm |

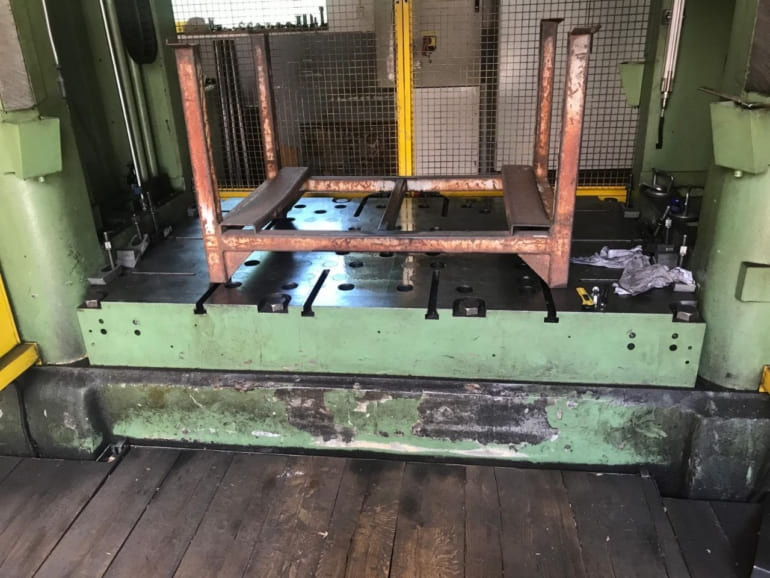

| Base dimensions | 2000 × 1400 mm |
| Speed at 220 tons | 22.4 mm/s |
| Speed at 300 tons | 17.7 mm/s |
| Speed at 400 tons | 13.1 mm/s |
| Speed at 500 tons | 10.4 mm/s |
| Weight | 48 ton |
| Condition | Used |
Dismantling, packaging & logistics
For heavy forging and hydraulic presses, logistics is as important as the machine itself. We treat this as a separate, carefully planned project.
Together with our partners we manage dismantling on site, industrial packaging, loading into trucks or containers and international transport. This reduces the risk of damage and delays, especially when the buyer cannot be present in person.
Request Information About This Machine
Please send us your contact details and we will provide available information about this equipment.
Frequently Asked Questions
The 500-ton press is listed as available in used condition. A hydraulic and structural inspection can verify pressure, cylinder sealing, guides and controls.
A pressure test can be requested if the installation, oil condition and site safety rules permit it. The test procedure and target load should be agreed before the visit.
The press offers up to 1700 mm internal vertical space, a 1100 mm adjustable path and a 2000 × 1400 mm base. Tool weight, mounting and required daylight must also be reviewed.
The documentation file can be checked for hydraulic diagrams, electrical drawings, manuals and service records. A confirmed register is supplied before contract.
Warranty depends on the agreed testing, repairs and sale terms and must appear in the written quotation. Otherwise, the press is accepted in its inspected condition.
Dismantling, oil handling, lifting, packing, heavy transport and customs coordination can be quoted. The final schedule follows a site and route assessment.
